AISI 304

GN 41 Stainless Steel Leveling Feet

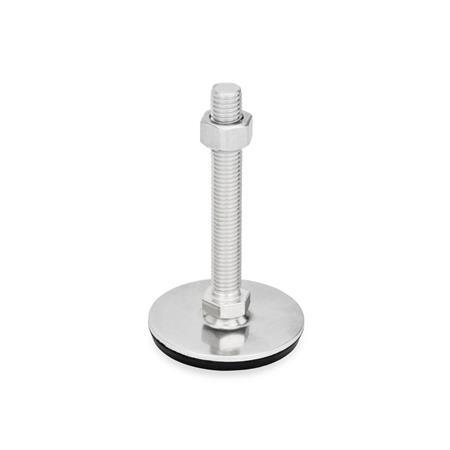

Stainless Steel Leveling Feet GN 41 thumbnail

Stainless Steel Leveling Feet GN 41 sketch

Type (Base)

D0	Without rubber pad
B0	Without rubber pad, with 2 mounting holes
D1	With rubber pad, clipped on, black
D3	With rubber pad, vulcanized, black

Version (Screw)

S	Without nut, external hexagon at the bottom
SK	With nut, external hexagon at the bottom
T	Without nut, wrench flat at the bottom
TK	With nut, wrench flat at the bottom
U	Without nut, hexagon socket at the top and wrench flat at the bottom
UK	With nut, hexagon socket at the top and wrench flat at the bottom
V	Without nut, external hexagon at the top and wrench flat at the bottom
VK	With nut, external hexagon at the top and wrench flat at the bottom
W	With adjustable sleeve, covered thread, wrench flat at the bottom
X	External hexagon with internal thread

Show filter

d₁	d₂	l₁ Version S / SK				Version T / TK and U / UK						l₂ Version V / VK				l₃ Version W				l₇ Version X	d₃	h₁	h₆	m	s

40	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	25	5,4	2	3,5	30	1,5
40	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	28	5,4	2	3,5	30	1,5
40	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	31	5,4	2	3,5	30	1,5
40*	M 16	-	-	-	-	75	100	125	150	200	250	-	-	-	-	-	-	-	-	37	5,4	2	3,5	30	1,5
50	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	25	6,6	2,5	4	38	2
50	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	28	6,6	2,5	4	38	2
50	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	32	6,6	2,5	4	38	2
50	M 16	-	-	-	-	75	100	125	150	200	250	-	-	-	-	-	-	-	-	37	6,6	2,5	4	38	2
60	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	25	6,6	2,5	4,5	48	2
60	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	28	6,6	2,5	4,5	48	2
60	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	32	6,6	2,5	4,5	48	2
60	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	110	135	160	185	37	6,6	2,5	4,5	48	2
80	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	26	8,5	3	5	64	2
80	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	29	8,5	3	5	64	2
80	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	32	8,5	3	5	64	2
80	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	110	135	160	185	38	8,5	3	5	64	2
80	M 20	-	-	-	-	75	100	125	150	200	250	100	125	150	200	134	159	184	234	45	8,5	3	5	64	2
80	M 24	-	-	-	-	100	125	150	200	300	-	100	150	200	-	159	209	259	-	-	8,5	3	5	64	2

Filter combination produces no result.

d₁	d₂	d₅	h₃	h₄	h₅	l₄	l₅	l₆	sw₁	sw₂	sw₃	sw₄	sw₅	sw₆	A/F6	t

40	M 8	-	11	-	-	-	-	-	17	-	-	-	-	-	14	8
40	M 10	-	11	-	-	-	-	-	17	-	-	-	-	-	14	10
40	M 12	-	11	-	-	-	-	-	17	-	-	-	-	-	17	12
40*	M 16	-	-	17	14	-	-	-	-	12	8	-	-	-	22	16
50	M 8	-	11	-	-	-	-	-	17	-	-	-	-	-	14	8
50	M 10	-	11	-	-	-	-	-	17	-	-	-	-	-	14	10
50	M 12	-	11	-	-	-	-	-	17	-	-	-	-	-	17	12
50	M 16	-	-	17	14	-	-	-	-	12	8	-	-	-	22	16
60	M 8	-	11	-	-	-	-	-	17	-	-	-	-	-	14	8
60	M 10	-	11	-	-	-	-	-	17	-	-	-	-	-	14	10
60	M 12	-	11	-	-	-	-	-	17	-	-	-	-	-	17	12
60	M 16	24	-	17	14	45	45	29	-	12	8	10	12	20	22	16
80	M 8	-	12	-	-	-	-	-	17	-	-	-	-	-	14	8
80	M 10	-	12	-	-	-	-	-	17	-	-	-	-	-	14	10
80	M 12	-	12	-	-	-	-	-	17	-	-	-	-	-	17	12
80	M 16	24	-	18	15	45	45	29	-	12	8	10	12	20	22	16
80	M 20	30	-	19	15	56	56	37	-	15	10	13	16	24	27	20
80	M 24	35	-	22	18	67	67	42	-	19	12	17	20	30	-	-

Filter combination produces no result.

* not available in type B0

Specification

Base plate
Stainless steel AISI 304

Threaded stem
Stainless steel AISI 303

Hexagon nut ISO 4032
Stainless steel

Rubber cap

Clipped on
Black, TPE (Santoprene^®)
≈ 80 Shore A

Rubber underlay

Vulcanized
Black, NBR (Perbunan^®) 70±5 Shore A

Elastomer Characteristics

Stainless Steel Characteristics

Load rating of Stainless Steel-Levelling feet GN 41 / GN 43 / GN 44 / GN 45

RoHS

Information

Stainless steel leveling feet GN 41 are for use in aggressive environments. The range of combinations of base plates and adjustable spindle versions allows these leveling feat to be used in every situation.

The base plate with the rubber underlay protects sensitive surfaces and reduces lateral slippage. The type B0 can also be fastened to the mounting surface through two holes.

The leveling feet are supplied fully assembled and are not removable.
