with Brass / Plastic Pivot

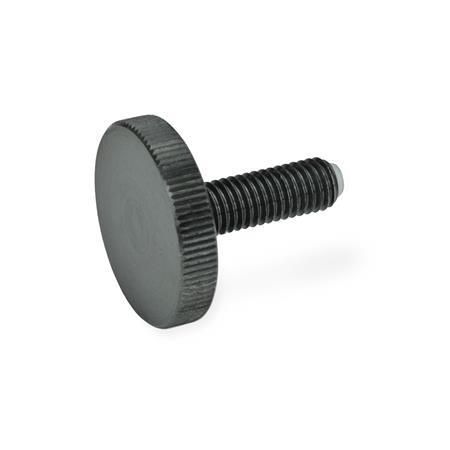

GN 653.10 Flat Knurled Screws, Steel

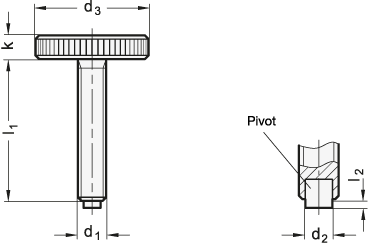

| d1 | l1 -1 | l2 Brass pad | Plastic pad | d2 Brass pad | Plastic pad | d3 | k | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M 5 | 12 | 16 | 20 | 25 | - | 0,5 | 1 | 3 | 3 | 20 | 4 |
| M 6 | 12 | 16 | 20 | 25 | 30 | 1 | 1,3 | 4 | 3,5 | 24 | 5 |
| M 8 | 16 | 20 | 25 | 30 | 40 | 1,5 | 1,6 | 6 | 5 | 30 | 6 |
Filter combination produces no result.
Specification
SteelST
Pivot
RoHS
- Property class 5
- Visible face fine turned
- Blackened
Pivot
- BrassMS
- Plastic (Polyacetal POM)KU
RoHS
Information
Flat knurled screws GN 653.10 with pivot in brass or plastic are used in applications, where marks and damages on the workpiece are unacceptable.
The head dimensions comply with flat knurled thumb screws DIN 653.
| How to order |
| ||||||||
GN 653.10-M6-25-ST-KU |
