with Joint, for Toggle Clamps with Forked Clamping Arm

GN 801.2 Clamping Arm Extenders

Clamping Arm Extenders GN 801.2 thumbnail

Show filter

m₁	h₁	b	d₁	d₂	d₃	d₄	h₂	m₂	Length l	for toggle clamps GN 810 GN 810.1 GN 810.3 GN 810.4	GN 820 GN 820.1 GN 820.2 GN 820.3 GN 820.4	GN 860

82	16	19,5	6,2	M 6	9,2	12	37	22	91	130	130	125
100	18	26	8	M 8	12	16	43	27	112	230	230	200

Filter combination produces no result.

Specification

SteelST
Zinc plated, blue passivated

RoHS

Information

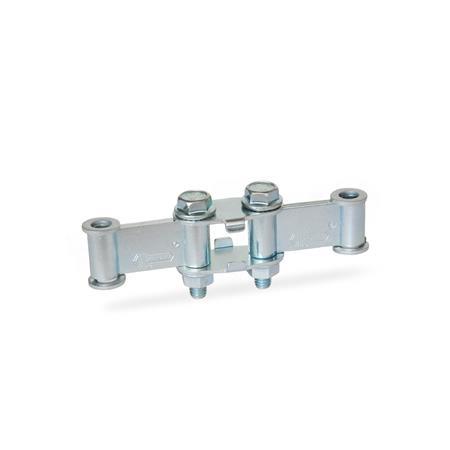

Clamping arm extenders GN 801.2 are used together with toggle clamps with “forked clamping arm” to clamp something simultaneously at two points in parallel, such as with clamping screws. These are mounted to the clamping arm and affixed in the desired position along the slot.

The side position of the clamping screws is adjusted via joints that enable any positioning of the spindle assemblies. A symmetrical arrangement/setting encourages a balanced clamping result.

All parts are supplied in a non-assembled set. Four flanged washers are included for fastening the clamping screw.
