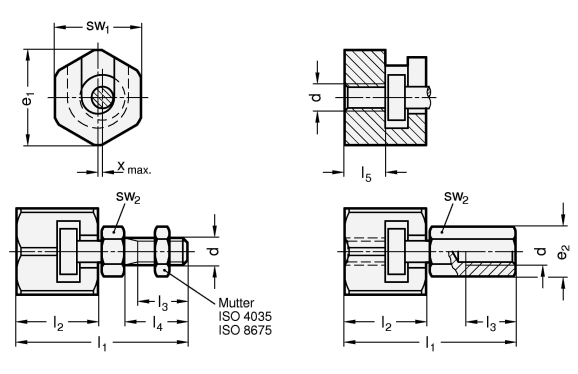

GN 240
Form
| A | |
| B |
| d | e1 | e2 | l1 | l2 | l3 | l4 | l5 | sw1 | sw2 | x | max. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M 6 | - | 21 | 11 | 375 | 18 | 11 | 14 | 9 | 19 | 10 | 6 | 9 |
| M 8 | - | 26 | 145 | 45 | 225 | 135 | 17 | 115 | 24 | 13 | 7 | 12 |
| M 10 | M 10 x 1.25 | 30 | 19 | 56 | 29 | 16 | 20 | 16 | 27 | 17 | 7 | 15 |
| M 12 | M 12 x 1.25 | 325 | 21 | 665 | 34 | 21 | 25 | 17 | 30 | 19 | 8 | 18 |
| M 16 | M 16 x 1.5 | 39 | 27 | 83 | 42 | 25 | 30 | 23 | 36 | 24 | 1 | 225 |
| M 20 | M 20 x 1.5 | 44 | 34 | 935 | 455 | 29 | 35 | 235 | 41 | 30 | 1 | 30 |
Filter combination produces no result.
Specification
RoHS
Information
| How to order |
| ||||
GN 240-M20x1,5-A |
