with Movable Bar
DIN 6306 Tommy Screws, steel, blackened
Type
| D | without thrust pad |
| E | with thrust pad DIN 6311 |

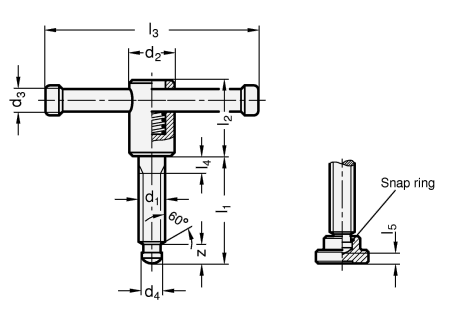

| d1 | l1 | d2 | d3 | d4 h11 | l2 | l3 | l4 | l5 ≈ | z ≈ | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M 10 | 40 | 50 | - | 18 | 8 | 8 | 32 | 80 | 10 | 3,6 | 8,2 |
| M 12 | 50 | 60 | - | 20 | 10 | 8 | 35 | 100 | 10 | 4,5 | 8,6 |
| M 16 | 55 | 70 | 90 | 24 | 13 | 12 | 40 | 120 | 10 | 5,3 | 10,6 |
| M 20 | 55 | 70 | 90 | 30 | 16 | 15,5 | 45 | 140 | 10 | 5,6 | 12,4 |
Filter combination produces no result.
Specification
Steel
Property class 5.8
Bar end caps
Plastic, gray
RoHS
Property class 5.8
- Blackened
- Thrust point hardened
Bar end caps
Plastic, gray
RoHS
Information
The thrust point of these screws DIN 6306 is designed to be used with or without the thrust pad for clamping.
The snap ring is a simple and quick method to connect the thrust pad to the tommy screw.
Instead of DIN 6311 a thrust pad GN 6311.1 can be used. In that case the tommy screw and the thrust pad have to be ordered separately.
The movable bar of the tommy screw is held in any position by the pressure spring.
The end caps are pressed on to the bar and thus limit the bar travel, they can also be supplied separately should the bar be plated first.The official DIN standard sheets provides for steel rings at this point.
| How to order |
| ||||||
DIN 6306-M12-50-D |
