Zinc Die Casting, Threaded Stud Stainless Steel

GN 101.1 Adjustable Hand Levers

Adjustable Hand Levers GN 101.1 thumbnail

Show filter

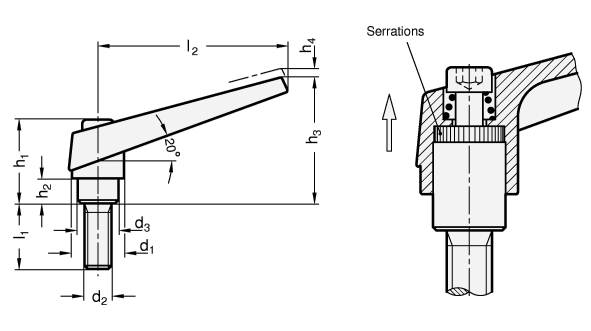

d₁	d₂		l₁							d₃	h₁	h₂	h₃	h₄ Stroke	l₂

14	M 5	M 6	12	16	20	25	32	40	50	10	25	4,5	35	3,5	45
18	M 6	M 8	16	20	25	32	40	50	63	13,5	31	6,5	45	4	62
22	M 10	-	20	25	32	40	50	63	80	16	36	8	52	4	74
25	M 12	-	25	32	40	50	63	80	-	19	43	11	63	4	89
30	M 16	-	32	40	50	63	80	-	-	23	50,5	12	76	5	108

Filter combination produces no result.

Specification

Handle
Zinc die casting

Powder coated
Black, RAL 9005, textured finishSW

Orange, RAL 2004, textured finishOS

Threaded stud and retaining screw
Stainless steel AISI 303

Stainless Steel Characteristics

RoHS

On request

With inch threads

Information

Adjustable hand levers GN 101.1 are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

Pulling the lever disengages serrations and allowing to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
