AISI 316L

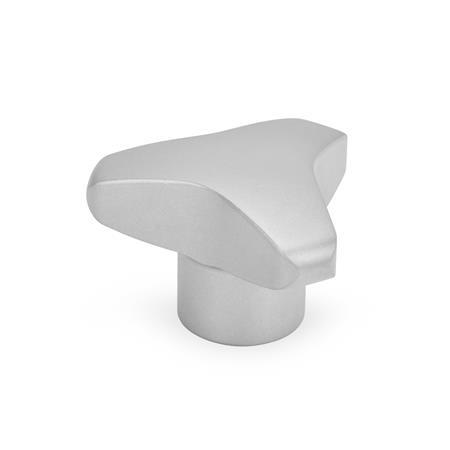

GN 5345.4 Stainless Steel Three-Lobed Knobs, matte shot-blasted
Type
| E | With threaded blind bore |
| D | With threaded through bore |
| C | With plain blind bore H7 |
| d1 | d2 Thread Type E / D | d3 H7 Bore Type C | d4 | h1 | h2 | t1 min. | t2 |
|---|---|---|---|---|---|---|---|
| 25 | M 5 | - | 12 | 16 | 8 | 10 | 11 |
| 32 | M 6 | - | 15 | 21 | 11 | 12 | 13 |
| 40 | M 6 | - | 18 | 26 | 15 | 12 | 13 |
| 40 | M 8 | B 8 | 18 | 26 | 15 | 15 | 13 |
| 50 | M 8 | - | 21 | 30 | 17 | 15 | 16 |
| 50 | M 10 | B 10 | 21 | 30 | 17 | 18 | 16 |
| 60 | M 10 | - | 25 | 35 | 18 | 18 | 20 |
| 60 | M 12 | B 12 | 25 | 35 | 18 | 22 | 20 |
Filter combination produces no result.
Specification
Stainless steel AISI 316L
Matte shot-blasted
RoHS
Matte shot-blasted
RoHS
On request
Highly polished (PL)
(only type D and E)
(only type D and E)
Information
Stainless steel three-lobed knobs GN 5345.4 have a smooth and sealed surface. They are particularly suitable for use where hygiene requirements are high. Their shape allows relatively high torques to be applied.
| How to order |
| ||||||
GN 5345.4-40-M8-E |
RoHS compliant:
-
-
Weight:
-
-
PDF not available
