Operating Lever Vertical, with Horizontal Mounting Base

GN 810 Toggle Clamps, Steel, zinc plated

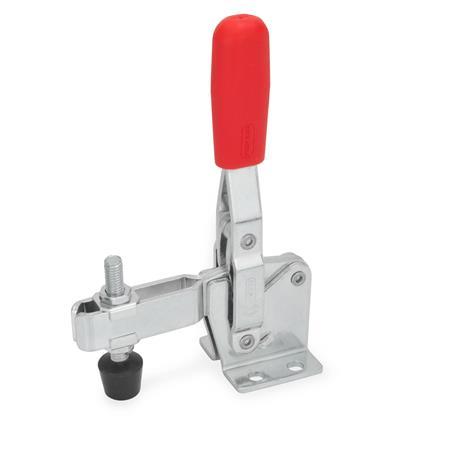

Toggle Clamps Steel zinc plated GN 810 thumbnail

Toggle Clamps Steel zinc plated GN 810 sketch

Type

A	Forked clamping arm, with two flanged washers
C	Forked clamping arm, with two flanged washers and clamping screw GN 708.1
E	Solid clamping arm, with clasp for welding

Show filter

Size	F_H in N Holding capacity	a ≈	b₁	b₂	b₃	d₁	d₂ ≈	h₁ ≈	h₂	h₃	h₄	h₅

75	750	20	29	34	5,2	M 5	4,5	98	20,5	11	19	5,5
130	1050	28	35	42	6,2	M 6	5,5	142	28	16	25,5	11,3
230	2000	40	43	45	8,5	M 8	6,5	168	33,5	18	30	9,5
330	2400	43	50	65	10,5	M 10	8,5	195	43	22	37	15
430	2800	64	58	65	12,5	M 12	8,5	247	55,5	26	43	23
530	4500	90	80	95	12,5	M 12	12,5	303	84,5	32	49	52

Filter combination produces no result.

Size	l₁ ≈ Type A Type C	Type E	l₂ ≈	l₃ max.	l₄	m₁	m₂	m₃	m₄	r ≈	s₁	s₂	w Adjustable range

75	66,5	67	31,5	41	45	15	16	24	24	62,5	2	4	15
130	85	86	42	54	55	12,5	19	27	29	79,5	2,5	5	17,5
230	110,5	112	58	73	68	19	20	32	32	104	3	6	20
330	129	130,5	66	86	77	29	32	46	45	122	3,5	7	19
430	164	166	88	114	100	32	32	45	45	156	4	10	33
530	223	225	125	152	100	50	51	70	70	212	7	10	27

Filter combination produces no result.

Specification

Steel
Case-hardened steel C 10
Zinc plated, blue passivated

Bearing pins tempered
Bearing rivets (for size 230 and up) case-hardened

All moving parts
Lubricated with special grease

Solid designed plastic handle
red, oil resistant

Clamping screw GN 708.1, type A

Steel, zinc plated
Rubber tip 85 Shore A

Elastomer Characteristics

RoHS

Accessory

Clamping Screws

Holders for Clamping Screws GN 801 (for Type A)

Holders for Clamping Screws GN 809 (for Type E)

Clamping Arm Extenders GN 801.1 (for Type A)

Clamping Arm Extenders GN 801.2 (for Type E)

Clamping Arm Extenders GN 809.1 (for Type E)

Information

Toggle clamps GN 810 work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.

Toggle clamps in the U-bar version with two flanged washers (type A) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for Type C.

Toggle clamps in the type E version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 holders for clamping screws to hold the work piece in place.
