with Turned Base Plate, with Mounting Holes

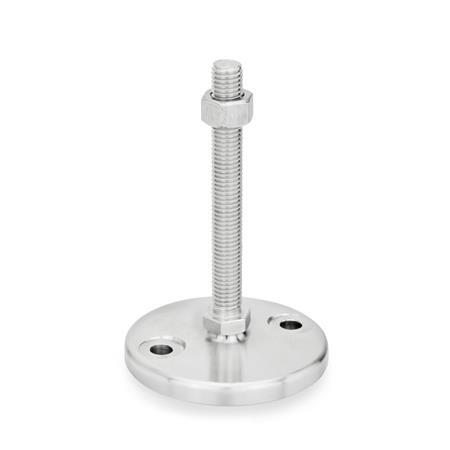

GN 23 Stainless Steel Leveling Feet

Stainless Steel Leveling Feet GN 23 thumbnail

Zoom

Zoom

Stainless Steel Leveling Feet GN 23 sketch

Type (Foot plate)

D0	Fine turned, without rubber underlay
D1	Fine turned, with rubber underlay, inlaid, black

Version of the screw

S	Without nut, external hexagon at the bottom
SK	With nut, external hexagon at the bottom
T	Without nut, wrench flat at the bottom
TK	With nut, wrench flat at the bottom
U	Without nut, hexagon socket at the top and wrench flat at the bottom
UK	With nut, hexagon socket at the top and wrench flat at the bottom
V	Without nut, external hexagon at the top and wrench flat at the bottom
VK	With nut, external hexagon at the top and wrench flat at the bottom
W	With adjustable sleeve, covered thread, wrench flat at the bottom
X	External hexagon with internal thread

Show filter

d₁	d₂	l₁ Version S / SK				Version T / TK and U / UK						l₂ Version V / VK				l₃ ≈ Version W				l₇ Version X	h₁	h₂	k

80	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	34	8,5	2	54,5
80	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	37	8,5	2	54,5
80	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	40	8,5	2	54,5
80	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	118	143	168	193	46	8,5	2	54,5
80	M 20	-	-	-	-	75	100	125	150	200	250	100	125	150	200	143	168	193	243	54	8,5	2	54,5
80	M 24	-	-	-	-	100	125	150	200	300	-	100	150	200	-	168	218	268	-	-	8,5	2	54,5
100	M 8	40	50	63	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	35	9	3	70,5
100	M 10	50	60	80	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	38	9	3	70,5
100	M 12	60	80	100	125	-	-	-	-	-	-	-	-	-	-	-	-	-	-	41	9	3	70,5
100	M 16	-	-	-	-	75	100	125	150	200	250	75	100	125	150	119	144	169	194	47	9	3	70,5
100	M 20	-	-	-	-	75	100	125	150	200	250	100	125	150	200	144	169	194	244	55	9	3	70,5
100	M 24	-	-	-	-	100	125	150	200	300	-	100	150	200	-	169	219	269	-	-	9	3	70,5
120	M 20	-	-	-	-	75	100	125	150	200	250	-	-	-	-	-	-	-	-	59	12	3,5	95,5
120	M 24	-	-	-	-	100	125	150	200	300	-	-	-	-	-	-	-	-	-	-	12	3,5	95,5
120	M 30	-	-	-	-	100	125	150	200	300	-	-	-	-	-	-	-	-	-	-	12	3,5	95,5

Filter combination produces no result.

d₁	d₂	d₃	h₃	h₄	h₅	l₄	l₅	l₆	A/F1	A/F2	A/F3	A/F4	A/F5	A/F6	A/F7	t

80	M 8	-	19,5	-	-	-	-	-	17	-	-	-	-	-	14	8
80	M 10	-	19,5	-	-	-	-	-	17	-	-	-	-	-	14	10
80	M 12	-	19,5	-	-	-	-	-	17	-	-	-	-	-	17	12
80	M 16	24	-	25,5	21,5	45	45	29	-	12	8	10	12	20	22	16
80	M 20	30	-	27	23	56	56	36	-	15	10	13	16	24	27	20
80	M 24	35	-	30,5	26	67	67	42	-	19	12	17	20	30	-	-
100	M 8	-	20,5	-	-	-	-	-	17	-	-	-	-	-	14	8
100	M 10	-	20,5	-	-	-	-	-	17	-	-	-	-	-	14	10
100	M 12	-	20,5	-	-	-	-	-	17	-	-	-	-	-	17	12
100	M 16	24	-	26,5	22,5	45	45	32	-	12	8	10	12	20	22	16
100	M 20	30	-	28	24	56	56	40	-	15	10	13	16	24	27	20
100	M 24	35	-	31,5	27	67	67	48	-	19	12	17	20	30	-	-
120	M 20	-	-	32	-	-	-	-	-	15	10	-	-	-	27	20
120	M 24	-	-	35,5	-	-	-	-	-	19	12	-	-	-	-	-
120	M 30	-	-	39,5	-	-	-	-	-	24	12	-	-	-	-	-

Filter combination produces no result.

d₁	d₂	Static load in kN Version S / SK	Version T / TK Version U / UK	Version V / VK	Version W	Version X

80	M 8	6	-	-	-	17
80	M 10	11	-	-	-	17
80	M 12	16	-	-	-	17
80	M 16	-	17	21	25	17
80	M 20	-	28	35	35	28
80	M 24	-	46	52	52	-
100	M 8	6	-	-	-	17
100	M 10	11	-	-	-	17
100	M 12	16	-	-	-	17
100	M 16	-	17	21	25	17
100	M 20	-	28	35	35	28
100	M 24	-	46	52	52	-
120	M 20	-	28	-	-	28
120	M 24	-	46	-	-	-
120	M 30	-	43	-	-	-

Filter combination produces no result.

Specification

Base plate
Stainless steel AISI 304

Threaded stem
Stainless steel AISI 303

Hexagon nut ISO 4032
Stainless steel AISI 304

Rubber underlay, inlaid
NBR (Perbunan®), 70 Shore A

Load rating of Stainless Steel-Levelling feet GN 21 / GN 23

Stainless Steel Characteristics

Elastomer Characteristics

RoHS

Information

Stainless steel leveling feet GN 23 will be delivered mounted and are not removable.
