Cast Iron / Aluminum

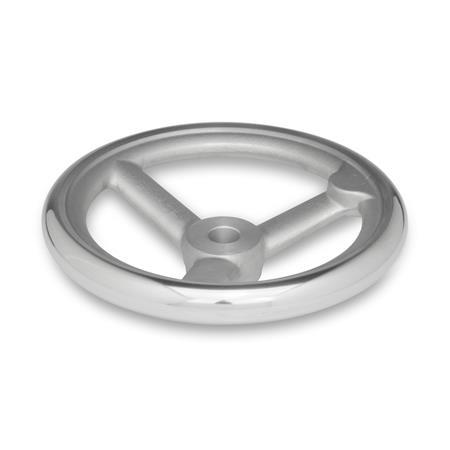

DIN 950 Handwheels, rim polished

Handwheels rim polished DIN 950 thumbnail

Bore code

B	Without keyway
K	With keyway
V	With square

Type

A	Without handle
F	With fixed handle
D	With revolving handle

Show filter

d₁	d₂ H7 Bore			s H11 Square	d₃ ≈	d₄	b	l₁	l₂ ≈	l₃ Type D	Type F	r	Ø Handle	No. of spokes

80	10	12	-	V 9	24	M 6	14	16	29	53	48,5	27	16	3
100	10	12	-	V 9	26	M 6	15	17	33	53	48,5	36	16	3
125	12	14	-	V 11	28	M 8	16	18	36	65	62	47	20	3
140	14	16	-	-	30	M 8	17	19	39	65	62	52	20	3
160	14	15	16	V 12	33	M 10	18	20	40	80	77	62	25	3
180	16	18	-	-	35	M 10	20	22	43	80	77	72	25	3
200	18	20	22	V 14	38	M 10	22	24	45	80	77	80	25	3
250	22	24	26	V 17	48	M 12	26	28	50	102	96,5	101	32	5
315	26	28	30	V 19	53	M 12	28	33	56	102	96,5	132	32	5
400	30	32	34	V 24	65	M 12	32	38	63	102	96,5	171	32	5
500	34	36	40	V 27	78	M 12	34	45	72	102	96,5	220	32	5

Filter combination produces no result.

Specification

Cast ironGG

Hub machined
Rim turned and polished

AluminumAL

Hub machined
Rim turned and polished
Unmachined body shot-blasted

Radial and axial runout of the rim < 0.4

Keyway P9 DIN 6885 Page 1

Squares DIN 79

ISO Fundamental Tolerances

Cross holes GN 110

RoHS

Information

Handwheels DIN 950 in cast iron are supplied with handles made of zinc plated steel. In aluminum they are supplied with handles made of plastic (type D) and made of zinc plated steel (type F).

The official standard sheet only provides for types A (without handle) and G (without handle, but with thread d₄), also without the handwheel diameter d₁ = 180.
