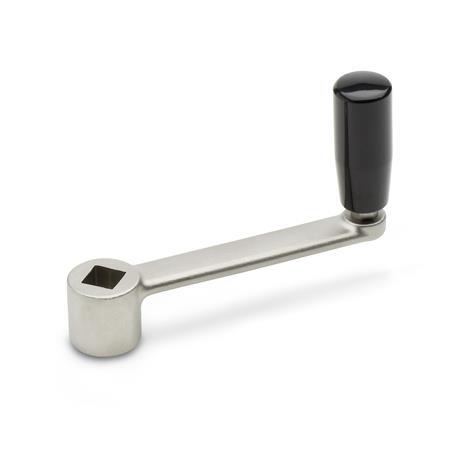

GN 269 Stainless Steel Cranked Handles
| Length l | d1 H9 Bore | s H11 Square | d2 | h1 | h2 ≈ | h3 | h4 ≈ | Ø Handle |
|---|---|---|---|---|---|---|---|---|
| 80 | B 10 | V 10 | 22 | 22 | 15,4 | 6,6 | 45 | 18 |
| 100 | B 12 | V 12 | 26 | 26 | 17,7 | 8,3 | 55 | 21 |
| 125 | B 14 | V 14 | 28 | 28 | 18,8 | 9,2 | 71 | 23 |
| 160 | B 17 | V 17 | 32 | 32 | 22,6 | 9,4 | 71 | 23 |
| 200 | B 19 | V 19 | 38 | 38 | 28 | 9,4 | 71 | 23 |
Filter combination produces no result.
Specification
Body
Stainless steel precision casting
AISI CF-8
Contact face of hub machined
Revolving handles
Similar to GN 598.1
RoHS
Stainless steel precision casting
AISI CF-8
Contact face of hub machined
Revolving handles
Similar to GN 598.1
- Plastic (Duroplast PF)
Black, shiny finish - Spindle
Stainless steel AISI 304
RoHS
On request
Stainless steel cranked handle with retractable handle GN 798.5
Information
Stainless steel cranked handles GN 269 have been designed to comply with stringent hygiene requirements.
The cylindrical handles are made of thermoset material which in general provides good stability when exposed to chemicals.
| How to order |
| ||||
GN 269-100-V12 |
RoHS compliant:
-
-
Weight:
-
-
PDF not available
