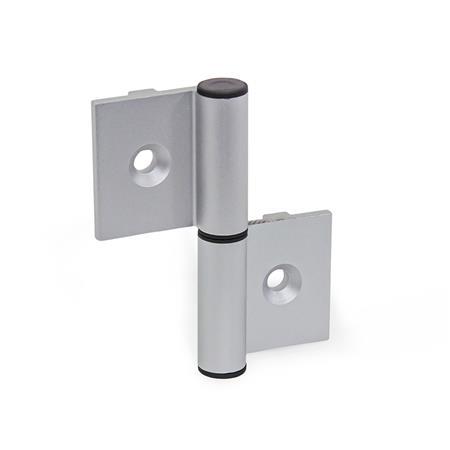

GN 2292 Hinges

Type

A	Exterior hinge wings
I	Interior hinge wings

Identification no.

C	With countersunk holes

Show filter

l₁ Type A	Type I	l₂	d₁	d₂	l₃	l₄	l₅	m₁ Type A	Type I	m₂	m₃	m₄	n -0,3	s₁	s₂

72	86	82	6,6	14	40	36	43	40,8	55	42	-	-	8	3,5	6,5
72	86	162	6,6	14	80	36	43	40,8	55	-	50	32	8	3,5	6,5

Filter combination produces no result.

Specification

Aluminum
Anodized, natural colorEL

Bearing bushing / cover cap

Plastic
Technopolymer (Polyamide PA)
Graphite gray, RAL 7024

Tapered dowel pin ISO 8741
Steel
Zinc plated, blue passivated

Mounting information

Operating Instruction for GN 2290

Plastic Characteristics

RoHS

Accessory

Bolt Sets GN 2290

On request

Other lengths and hole spacings

Other finishes

Information

Hinges GN 2292 are made of drawn profiled aluminum and are used on doors and covers, for example. The guide step allows them to be quickly and easily mounted to all commercially available profile systems with a nominal size of 40 mm and groove width “n”.

Given the external hinge wing, type A hinges allow mounting with a very small door gap. The type I is fastened in the door gap. The mounting screws are therefore inaccessible and hence protected from vandalism when the door is closed.

The hinges are delivered loose and must be mounted according to the accompanying instructions. Any hinge combination may be realized thanks to the modular design and available accessories.
