Operating Lever Horizontal, with Side Mounting

GN 820.2 Stainless Steel Toggle Clamps

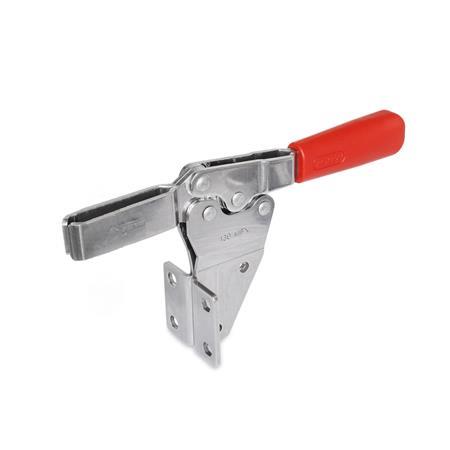

Stainless Steel Toggle Clamps GN 820.2 thumbnail

Stainless Steel Toggle Clamps GN 820.2 sketch

Type

MF	Forked clamping arm, with two flanged washers
MFC	Forked clamping arm, with two flanged washers and clamping screw GN 708.1

Show filter

Size	F_H in N Holding capacity	a ≈	b₁	b₂	b₃	d₁	d₂	h₁	h₂	h₃	h₄	h₅ max.

75	900	20	30	25,5	5,5	M 5	4,5	62	39	11	19	30
130	1000	32	39	35	6,5	M 6	5,5	85	57,5	16	255	47,5
230	1700	37	43	40	8,5	M 8	6,5	102	69	18	30	53

Filter combination produces no result.

Size	l₁	l₂	l₃	l₄	m₁	m₂	m₃	r	s	Adjustable range

75	118	30	71	45	18	13,5	6	42,5	2	15
130	170	45	95	55	26	22	6,5	61	2,5	17,5
230	195	52	113	68	28,5	24	8	70	3	20

Filter combination produces no result.

Specification

Stainless steelNI
AISI 304

All moving parts
lubricated with special grease

Hand grip
High quality, oil resistant, red plastic

Clamping screw GN 708.1, type A

Stainless steel, AISI 304
Rubber tip 85 Shore A

Stainless Steel Characteristics

RoHS

Accessory

Clamping screws

Information

Stainless steel toggle clamps GN 820.2 work according to the toggle principle: lever and clamping bar move in the opposite direction.

They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. The 90° rotated mounting surface allows a space-saving installation in addition to the clamping point.

Stainless steel toggle clamps in the U-bar version with two flanged washers (type MF) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type MFC.
