Retractable Mechanism Stainless Steel, Locked in Operating Position

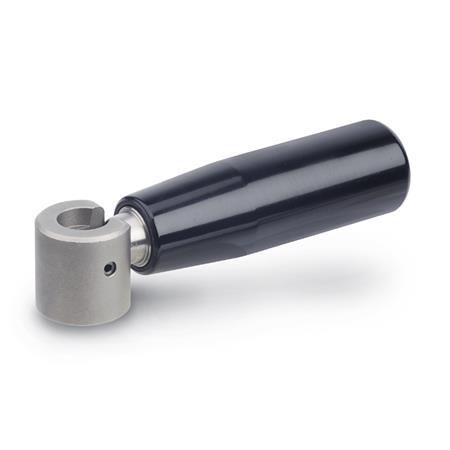

GN 598.5 Retractable Handles
| d1 | d2 | d3 | l1 ≈ | l2 | l3 | l4 ≈ | l5 |
|---|---|---|---|---|---|---|---|
| 23 | M 6 | 20 | 87 | 19,5 | 6 | 80 | 10,5 |
| 26 | M 6 | 20 | 102 | 19,5 | 6 | 95 | 10,5 |
| 28 | M 8 | 26 | 118 | 26 | 10 | 106 | 16 |
Filter combination produces no result.
Specification
Handle
PlasticKU
Duroplast (Phenolic PF)
Retractable mechanism Stainless steel
RoHS
PlasticKU
Duroplast (Phenolic PF)
- Temperature resistant up to 110 °C
- Black, shiny finish
- Revolving
Retractable mechanism Stainless steel
- Spindle
AISI 303 - Flat base
Sintered steel 316LHC
RoHS
Information
Retractable handles GN 598.5 are used when the handle should not protrude temporarily for space or safety reasons.
| How to order |
| ||||
GN 598.5-KU-23 |
RoHS compliant:
-
-
Weight:
-
-
