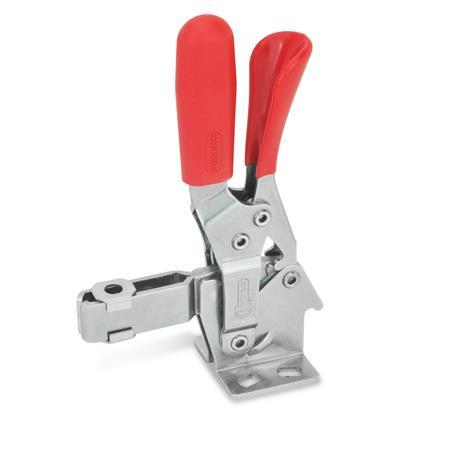

Operating Lever Vertical, with Lock Mechanism, with Horizontal Mounting Base
GN 810.3 Stainless Steel Toggle Clamps
Type

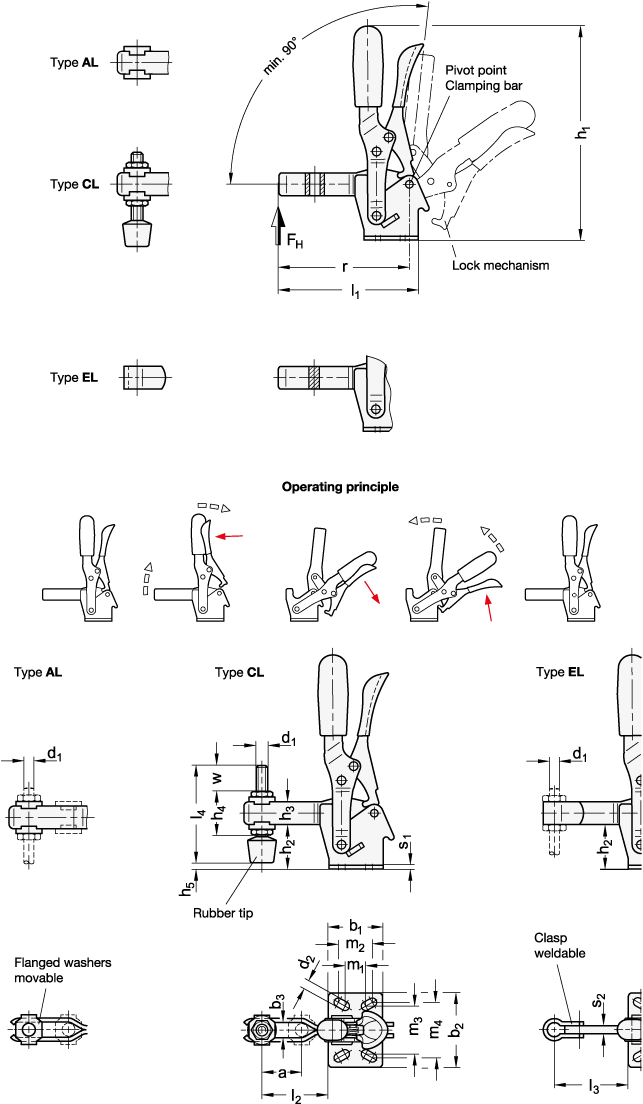

CL | Forked clamping arm, with two flanged washers and clamping screw GN 708.1 |
EL | Solid clamping arm, with clasp for welding |
AL | Forked clamping arm, with two flanged washers |
Size | FH in N Holding capacity | a ≈ | b1 | b2 | b3 | d1 | d2 ≈ | h1 ≈ | h2 | h3 | h4 | h5 |
---|---|---|---|---|---|---|---|---|---|---|---|---|
130 | 1050 | 28 | 35 | 42 | 6,2 | M 6 | 5,5 | 142 | 28 | 16 | 25,5 | 11,3 |
230 | 2000 | 40 | 43 | 45 | 8,5 | M 8 | 6,5 | 168 | 33,5 | 18 | 30 | 9,5 |
Size | l1 ≈ Type AL Type CL | Type EL | l2 ≈ | l3 max. | l4 | m1 | m2 | m3 | m4 | r ≈ | s1 | s2 | w Adjustable range |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
130 | 85 | 86 | 42 | 54 | 55 | 12,5 | 19 | 27 | 29 | 79,5 | 2,5 | 5 | 17,5 |
230 | 110,5 | 112 | 58 | 73 | 68 | 18 | 21 | 32 | 32 | 104 | 3 | 6 | 20 |
Specification
AISI 304
All moving parts
Lubricated with special grease
Hand grip
High quality, oil resistant, red plastic
Clamping screw GN 708.1, type A
- Stainless steel AISI 304
- Rubber tip 85 Shore A
RoHS
Accessory
Clamping ScrewsHolders for Clamping Screws GN 801 (for Type AL)
Holders for Clamping Screws GN 809 (for Type EL)
Clamping Arm Extenders GN 801.1 (for Type AL)
Clamping Arm Extenders GN 801.2 (for Type EL)
Clamping Arm Extenders GN 809.1 (for Type EL)
Information
Stainless steel toggle clamps GN 810.3 are latched in both end positions. In the clamped position, this prevents unintentional opening or opening caused by vibrations; and in the open position, it prevents self-closing of the toggle clamp, such as due to an extended clamping arm. The latching can be disabled with a single hand to allow for opening / closing.
They work according to the toggle principle: lever and clamping bar move in the same direction. In the clamped position the operating lever is in its vertical position.
Toggle clamps in the U-bar version with two flanged washers (type AL) can accommodate an application specific clamping screw. A clamping screw with neoprene rubber tip is also included for type CL.
Type EL version can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN 809 holders for clamping screws to hold the work piece in place.
see also...
How to order |
| ||||||
GN 810.3-230-EL-NI |
