with Mounting Flange, for Mounting with Screws

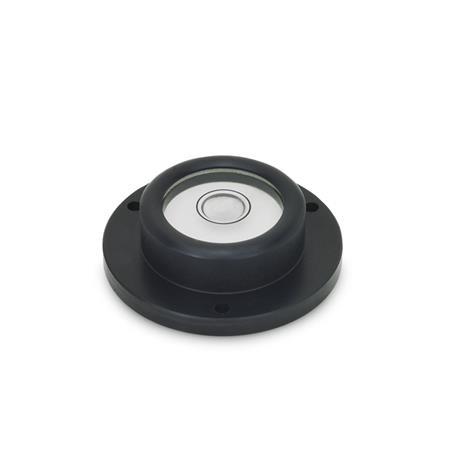

GN 2277 Bull´s Eye Spirit Levels
Sensitivity
| 30 | Angle minutes, bubble move by 2 mm |
Type
| A | Mounting flange for bolting to surface |
| B | Mounting flange for inserting (collar) |
| d1 | d2 | d3 | d4 | d5 | h1 | h2 |
|---|---|---|---|---|---|---|
| 20 | 10 | 14 | 17 | 1,8 | 10 | 1,8 |
| 25 | 12 | 17 | 21 | 2,2 | 10 | 2 |
| 30 | 12 | 18 | 24 | 3,2 | 11 | 3 |
| 40 | 20 | 28 | 34,5 | 3,2 | 14 | 4 |
| 50 | 25 | 34 | 43 | 3,2 | 15 | 5 |
Filter combination produces no result.
Specification
Housing
Aluminum
Anodized, natural colorALN
Anodized blackALS
Spirit level element
Glass plastic body
Filling
Colorless-transparentK
Casting compound
mineral-based
RoHS
Aluminum
Anodized, natural colorALN
Anodized blackALS
Spirit level element
Glass plastic body
Filling
Colorless-transparentK
Casting compound
mineral-based
RoHS
Accessory
Adjustment Plates GN 2277.1On request
Filling, green-transparent
Other sensitivities
Housing in brass or stainless steel
Other sensitivities
Housing in brass or stainless steel
Information
Bull´s eye spirit levels GN 2277 are used to check the horizontal position of jigs, machines, devices, appliances and instruments.
The spirit levels are aligned in relation to the reference surface so that the bubble is located inside the marking ring when the horizontal position of the contact surface is achieved.
| How to order |
| ||||||||||
GN 2277-ALS-50-K-30-A |
