Retaining System, Analog Indication

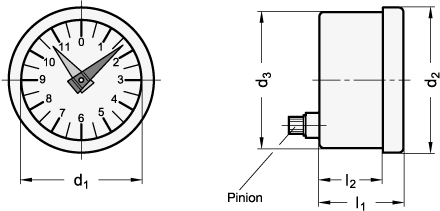

GN 000.9 Position Indicators

ELESA original design PA11 / PA12 Info

Type

R	Numbers ascending clockwise
L	Numbers ascending anti-clockwise

Show filter

d₁	Reduction Counter gear					d₂	d₃	l₁	l₂

42	2:1	10:1	20:1	40:1	72:1	49,8	48,2	30	23
42	4:1	12:1	24:1	48:1	100:1	49,8	48,2	30	23
42	6:1	15:1	30:1	50:1	-	49,8	48,2	30	23
42	8:1	16:1	36:1	60:1	-	49,8	48,2	30	23
60	2:1	10:1	24:1	50:1	150:1	68,5	67	32	25
60	4:1	12:1	30:1	60:1	-	68,5	67	32	25
60	6:1	16:1	36:1	72:1	-	68,5	67	32	25
60	8:1	20:1	40:1	100:1	-	68,5	67	32	25

Filter combination produces no result.

Specification

Housing
Plastic (Polyamide PA)

Glass fiber reinforced
Black, matte finish

Sight glass
Plastic (Polyamide PA)

Clear glass, ageing proof
Shock-resistant

Housing / Sight glass

Temperature resistant up to 100 °C
Oil and solvent proof
(not suitable for alcohol)

Pointer plastic

Long pointer red
Short pointer black

Scale aluminum

Matte anodized
Graduations and numbers black

Protection class IP 65

Plastic Characteristics

IP Protection classes

RoHS

On request

Special scales

Information

Position indicators GN 000.9 have been shaped for installation in different operating elements.

The salient features of these counters are:

The housing, the hand spindle housing, hand spindle and safety glass are produced from one single piece of material and ultrasonically welded giving a spray water proof and corrosion free unit (Protection class IP 65).

The installation principle with the forced drive allows the use of the positioning indicator GN 000.9 in any position even in case of strong vibration.

The reduction gear ratio will show how many spindle revolutions (long red pointer) will be required for one single revolution of the shorter black pointer.
