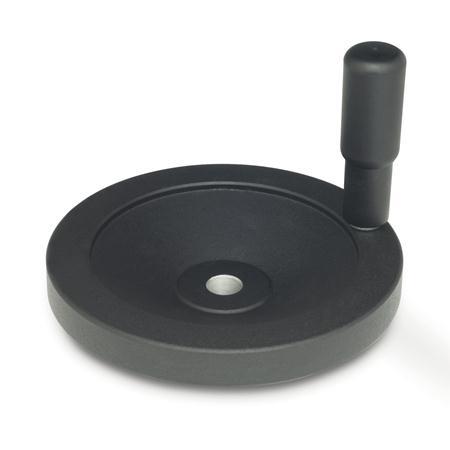

GN 323 Disk Handwheels, Aluminum
Bore code:
| B | Without keyway |
| K | With keyway |
Type
| A | Without handle |
| R | With revolving handle |

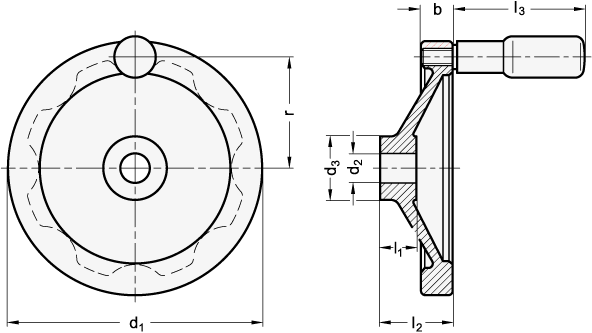

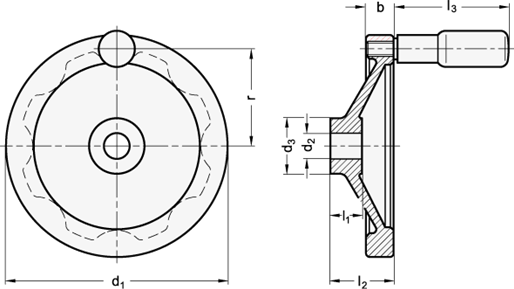

| d1 | d2 H7 Bore | d3 | b | l1 | l2 ≈ | l3 ≈ | r | Ø Handle GN 798 | |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 10 | 12 | 26 | 13 | 16 | 26 | 44 | 33,5 | 16 |
| 100 | 10 | 12 | 28 | 14 | 17 | 30 | 58,5 | 42,5 | 18 |
| 125 | 12 | 14 | 31 | 15 | 18 | 33 | 61,5 | 54 | 22 |
| 140 | 14 | 16 | 36 | 16,5 | 19 | 36 | 76,5 | 61 | 24 |
| 160 | 14 | 16 | 36 | 18 | 20 | 39 | 76,5 | 71 | 24 |
| 200 | 18 | 20 | 45 | 20,5 | 24 | 45 | 86,5 | 89 | 25 |
| 250 | 22 | 26 | 48 | 23 | 28 | 51 | 86,5 | 113 | 25 |
Specification
Aluminum
Radial and axial runout of the rim < 0.4
Wheel body
Powder coated
Matte black, textured finish
Revolving handles GN 798
RoHS
- Hub machined
- Rim turned
Radial and axial runout of the rim < 0.4
Wheel body
Powder coated
Matte black, textured finish
Revolving handles GN 798
- Plastic, Technopolymer
Black, matte finish - Spindle steel
Zinc plated, blue passivated
RoHS
Information
Disk handwheels GN 323 have recessed grips at their back.
| How to order |
| ||||||||
GN 323-160-B14-R |
