with Vibration Damping Element

GN 148 Leveling Feet

Type

A	With two-hole flange (d°°1°° = 60/90/113)
B	With four-bolt flange (d°°1°° = 113 / 126)

Identification no.

1	Without tear-off lock
2	With tear-off lock

Show filter

d₁	d₂	d₃	d₄ Type A	d₅ Type B	h	s	b Type A	l₁ Type A	l₂ Type B	m₁ Type A	m₂ Type B

60	M 10	78	9	-	30	2	78	128	-	110	-
90	M 12	106	13	-	39	3	110	170	-	140	-
113	M 16	150	12,5	12,5	52	4	150	216	168	184	132
126	M 20	177	-	13	63	4	-	-	184	-	150

Filter combination produces no result.

Specification

Vibration damping element
Natural rubber (NR)

Vulcanized
Temperature resistant up to 80 °C
Hardness Shore A ±5
Soft43
Medium57
Hard68

Sheet metal
zinc plated, blue passivated

Threaded insert
Steel
Zinc plated, blue passivated

Elastomer Characteristics

RoHS

Accessory

Rubber Pads GN 148.2

Information

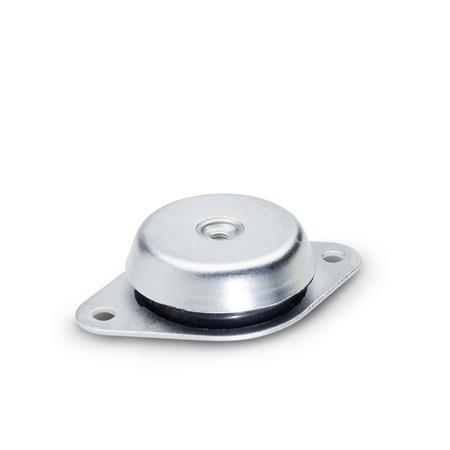

Leveling feet GN 148 are designed for setting up heavy machinery and units with insulation against vibrations.

This has a positive impact on the lifetime of machines and additionally reduces the noise pollution.

The structure is such that horizontal forces are also absorbed.

The design with tear-off lock (type 2) protects the leveling feet from destruction caused by tear-off under excessive tension loads.

The details relating to the load bearing capacity are non-binding recommended values and rule out any liability. They constitute no general warranty of quality and condition. The user must determine from case to case whether a product is suitable for the intended use.
