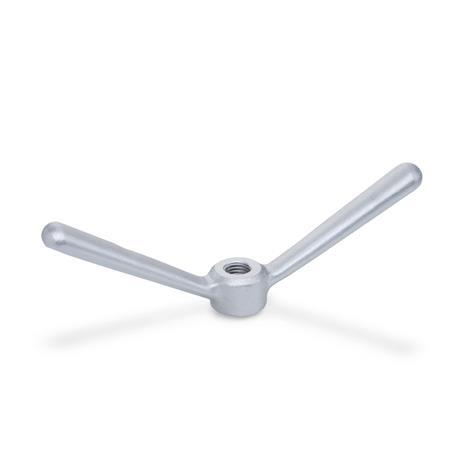

GN 206.1 Stainless Steel Clamp Nuts with Double Lever
| d1 | d2 | a | b | h1 | h2 ≈ | l ≈ |
|---|---|---|---|---|---|---|
| 16 | M 8 | 7 | 12 | 12 | 34 | 56 |
| 20 | M 10 | 9 | 14 | 14 | 42 | 70 |
| 25 | M 12 | 11 | 18 | 18 | 53 | 87 |
| 32 | M 16 | 15 | 22 | 22 | 66 | 109 |
| 40 | M 20 | 18 | 28 | 28 | 84 | 140 |
Filter combination produces no result.
Specification
Stainless steel precision castingNI
RoHS
- AISI CF-8
- Fettled
- Contact faces machined
RoHS
On request
Stainless steel clamp nuts with double lever GN 206.1, powder coated
Information
| How to order |
| ||||||
GN 206.1-20-M10-NI |
