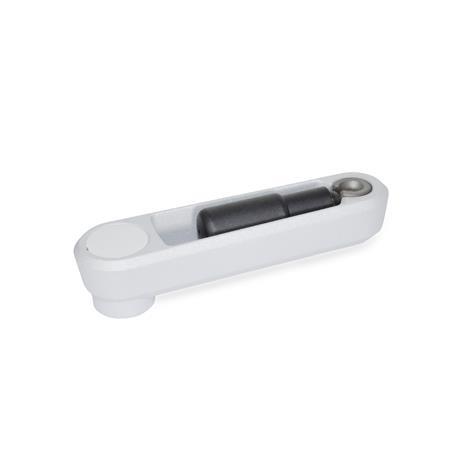

GN 472.5 Cranked Handles with Retractable Handle, plastic coated
| Length l | d1 H7 Bore | s H11 Square | d2 | d3 | h1 | h2 ≈ | h3 | h4 | h5 ≈ | Ø Handle GN 798.5 |
|---|---|---|---|---|---|---|---|---|---|---|
| 80 | B 10 | V 10 | 23 | 30 | 19,5 | 4 | 25,5 | 4,3 | 43 | 16 |
| 100 | B 12 | V 12 | 26,7 | 35 | 23,5 | 5,5 | 29,5 | 4,2 | 57,5 | 18 |
| 125 | B 14 | V 14 | 28 | 37 | 30,5 | 10,5 | 36,5 | 4,2 | 76,5 | 24 |
Filter combination produces no result.
Specification
Body
Aluminum
Cover
Plastic
Light gray
Retractable handles GN 798.5
RoHS
Aluminum
- Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
- Contact face of hub machined
Cover
Plastic
Light gray
Retractable handles GN 798.5
- Plastic, Technopolymer
Black, matte finish - Retractable mechanism
Stainless steel - Axle parts AISI 303
- Flat base
Sintered steel AISI 316
RoHS
Information
The handle of the cranked handles with retractable handle GN 472.5 is locked in a tapered bore in the operating position.
For tilting, the handle must first be pulled out of the taper in axial direction.
A pressure spring holds the handle in both end positions. When folded out, it automatically re-engages.
| How to order |
| ||||||
GN 472.5-115-B14-SW |
