with Releasing Button, Plastic, Threaded Stud Stainless Steel

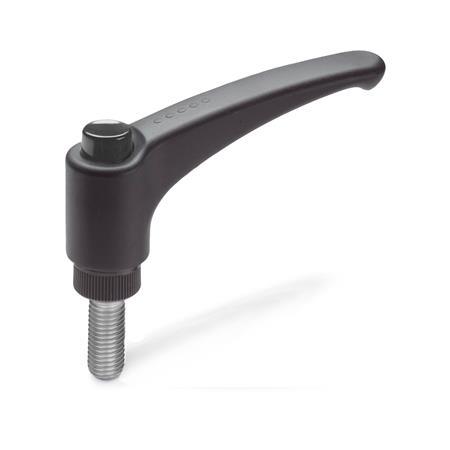

GN 603.1 Adjustable Hand Levers

Adjustable Hand Levers GN 603.1 thumbnail

ELESA original design ERX.SST.p Info

Show filter

l₁	d₁	l₂										d₂	d₃	h₁	h₂	h₃	h₄ Stroke

30	M 5	10	16	-	-	-	-	-	-	-	-	12	15,5	29,5	6	30	3,5
30	M 6	10	16	20	25	30	-	-	-	-	-	12	15,5	29,5	6	30	3,5
44	M 5	10	16	-	-	-	-	-	-	-	-	12	15,5	29,5	6	32,5	3,5
44	M 6	10	16	20	25	30	-	-	-	-	-	12	15,5	29,5	6	32,5	3,5
63	M 6	10	20	30	40	-	-	-	-	-	-	15	19	37,5	8	43	4
63	M 8	16	20	25	30	35	40	45	50	60	70	15	19	37,5	8	43	4
78	M 10	20	30	35	40	50	60	-	-	-	-	19	23	47	12	54	4
78	M 12	30	35	40	50	70	-	-	-	-	-	19	23	47	12	54	4
95	M 12	30	40	50	70	-	-	-	-	-	-	21,5	26,5	54,5	13	64,5	4,5
108	M 12	30	40	50	70	-	-	-	-	-	-	25	30	54,5	11	65,5	4,5

Filter combination produces no result.

Specification

Handle
Plastic

Glass fiber reinforced
Temperature resistant up to 130 °C
Black-gray, matte, similar to RAL 7021

Color of the releasing button:
Black-gray, RAL 7021, shiny finishDSG DSG

Orange, RAL 2004, shiny finishDOR DOR

Gray, RAL 7035, shiny finishDGR DGR

Yellow, RAL 1021, shiny finishDGB DGB

Blue, RAL 5024, shiny finishDBL DBL

Red, RAL 3000, shiny finishDRT DRT

Green, RAL 6017, shiny finishDGN DGN

Threaded stud
Stainless steel AISI 303

Retaining screw
Stainless steel AISI 303

Plastic Characteristics

Stainless Steel Characteristics

RoHS

Information

Adjustable hand levers GN 603.1, like all the products of the Ergostyle® range, are renowned for their good style but also their ergonomical shape.

They are like all adjustable hand levers ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.

The releasing button offers an easy disengagement. Its use is limited to applications where dismantling of the lever for installation is not required.
