Plunger Pin in Standard Position Protruded

GN 712 Cam Action Indexing Plungers, Guide steel, zinc plated

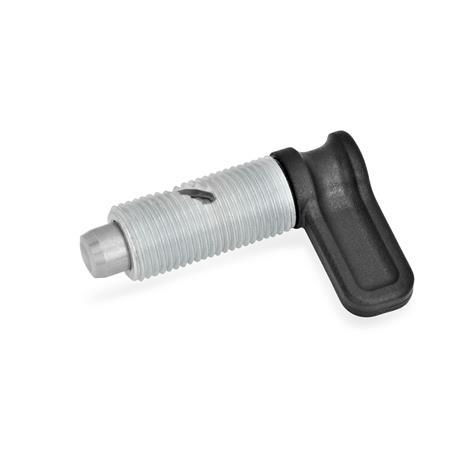

Cam Action Indexing Plungers Guide steel zinc plated GN 712 thumbnail

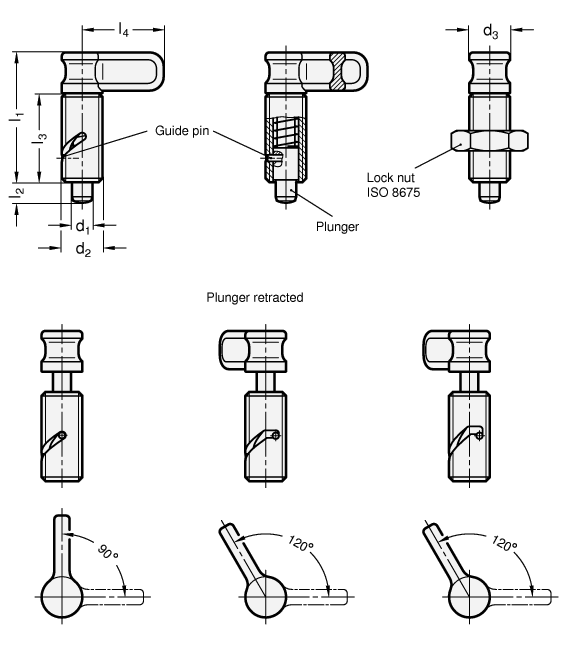

Cam Action Indexing Plungers Guide steel zinc plated GN 712 sketch

Type

A	Without rest position, without lock nut
AK	Without rest position, with lock nut
R	With rest position, without lock nut
RK	With rest position, with lock nut
S	With safety-rest position, without lock nut
SK	With safety-rest position, with lock nut

Show filter

d₁ Pin h9 Bore G7	d₂	d₃	l₁ ≈	l₂	l₃ min.	l₄	Spring load in N ≈ initial	end

6	M 16 x 1,5	16	51	8	35	32	6,5	20
8	M 16 x 1,5	16	51	8	35	32	6,5	20
10	M 16 x 1,5	16	51	8	35	32	6,5	20

Filter combination produces no result.

Specification

Steel
Zinc plated, blue passivated

Plunger pin
Stainless steel AISI 303

Latch
Plastic (Polyamide PA)

Black, matte finish
Not removable

Load Rating Information

ISO Fundamental Tolerances

Metric ISO fine thread DIN 13

Stainless Steel Characteristics

Plastic Characteristics

RoHS

On request

Stainless steel version

Information

Cam action indexing plungers GN 712 are used in such applications where the plunger pin must not protrude continually. When turning the cam by 90° resp.120° degrees in anti-clockwise direction, the plunger pin is moved through a curved opening in the body. After that, the plunger pin is retracted.

Depending on the type, the plunger pin is moved back by a pressure spring in its original position (Type A), is held in retracted position (Type R), resp. is secured against accidental operation (Type S). In order to move the plunger pin, this safety version requires an additional lifting of the latch.
