Aluminum, Split Assembly
GN 165.1 Base Plate Linear Actuator Connectors
Identification no.
| 2 | With 2 stainless steel socket cap screws DIN 912 |
| d1 Bore | s Square | d2 | d3 Mounting screws on the drive key | k Clamping length | l1 | l2 | t | x1 | x2 | y1 | y2 | z Screw locations | Accessory Recom. hand lever GN 911 for z l3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B 30 | V 30 | 6,5 | M 4 | 58 | 69 | 46 | 7 | 75 | 60 | 75 | 60 | M8-35 | 63 | 78 |
| B 40 | V 40 | 11 | M 5 | 98 | 98 | 70 | 14 | 115 | 90 | 119 | 90 | M10-60 | 78 | 92 |
| B 50 | V 50 | 11 | M 6 | 98 | 98 | 70 | 14 | 115 | 90 | 119 | 90 | M10-60 | 78 | 92 |
Filter combination produces no result.
Specification
Aluminum
Powder coated
Black, RAL 9005, textured finishSW
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
Powder coated
Black, RAL 9005, textured finishSW
Socket cap screws DIN 912
Stainless steel AISI 304
Hex nuts DIN 985
Stainless steel AISI 304
Self-locking via polyamide ring
RoHS
Accessory
Adjustable Hand Levers GN 911Information

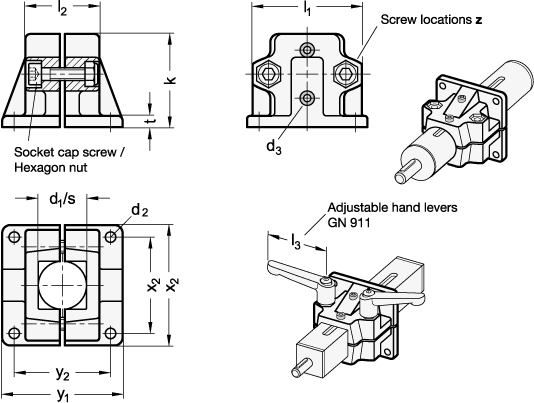

Base plate linear actuator connectors GN 165.1 are based on base plate connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator.
The play of the guide bore d1 / s can be adjusted via the screw location z, or the linear actuator connectors can be clamped after adjustment.
For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN 911 listed in the table as accessories.
| How to order |
| ||||||
GN 165.1-B50-2-SW |
