for Tubular Handles Ø28, Angled

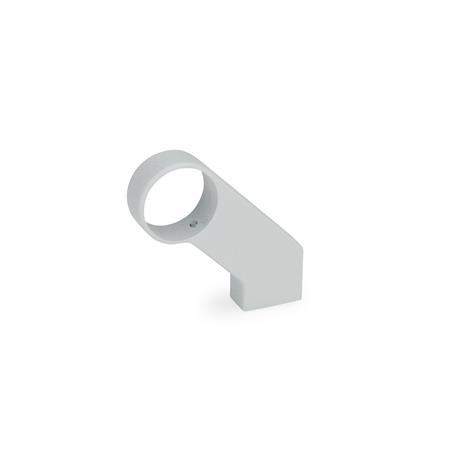

GN 333.8 Handle Legs, angled, zinc-die casting
Type
| A | Mounting from the back (threaded blind bore) |
| d1 | d2 | b1 | b2 | b3 | b4 | h1 | h2 | t min. |
|---|---|---|---|---|---|---|---|---|
| 28 | M 8 | 25 | 14 | 50 | 66 | 50 | 66 | 15 |
Filter combination produces no result.
Specification
Zinc die casting
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Grub screw with plastic pivot
GN 913.3-M4-6-KU
RoHS
Powder coated
Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR
Grub screw with plastic pivot
GN 913.3-M4-6-KU
RoHS
Information
Handle legs GN 333.8 can be used for longer tubes or higher loads of tubular handles.
They can be used for tube Ø 28 of the tubular handles GN 333, GN 333.1, GN 333.2 and GN 333.3.
| How to order |
| ||||||
GN 333.8-28-A-SW |
