GN 731.2 Latches with Gripping Tray

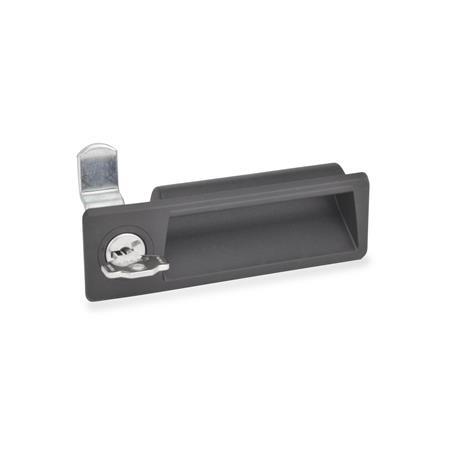

Latches with Gripping Tray GN 731.2 thumbnail

ELESA original design PR-CH / LPR Info

Latches with Gripping Tray GN 731.2 sketch

Type

SC	Operation with key (same lock)
SU	Operation with key (different lock)
SM	Operation with key (different lock, with master key)
DK	Operation with triangular spindle (DK6.5)
VK	Operation with square spindle
VDE	Operation with double bit

Identification no.

1	Operation, in drawn position, at the top left
2	Operation, in drawn position, at the top right

Show filter

Latch crimping z	A₁	A₂	Latch length l				F₁ in N	F₂ in N

0	23	23	18	22	32	46	3600	1500
2	21	25	25	28	35	-	3600	1500
5	18	28	30	33	36	-	3600	1500
8	15	31	33	-	-	-	3600	1500
12	11	35	27	-	-	-	3600	1500

Filter combination produces no result.

Specification

Housing, operation bolt

Technopolymer (Polyamide PA)
Glass fiber reinforced
Temperature resistant up to 80 °C
Black-gray, RAL 7021, matte finishSG

Latch arm
Steel, zinc plated

Lock cylinder
Zinc die casting

Key
Brass, nickel plated

Washer, screw (Type SC, SU, SM)
Steel, zinc plated

Washer, screw (Type DK, VK, VDE)
Stainless steel AISI 304

Plastic Characteristics

RoHS

Accessory

Additional master keys for type SM available on request.

Information

Latches with gripping tray GN 731.2 are used in applications which require a moulded recess in addition to the latching mechanism, e.g. if operating elements are not allowed to protrude for reasons of space.

A turning motion limited to 90°, e.g. of the triangle in type DK, locates the locking behind the frame to close the door. The latch arms of different lengths, some of which are crimped, can be mounted for foldover, opening up a wide range of applications.

The details on load-bearing capacity F₁ and F₂ were determined with a wall thickness s = 1,5 mm.

Latches with gripping tray GN 731.2 are supplied with loosely enclosed latch arm.

Two socket keys made of plastic or two brass keys are included parts of the order.
