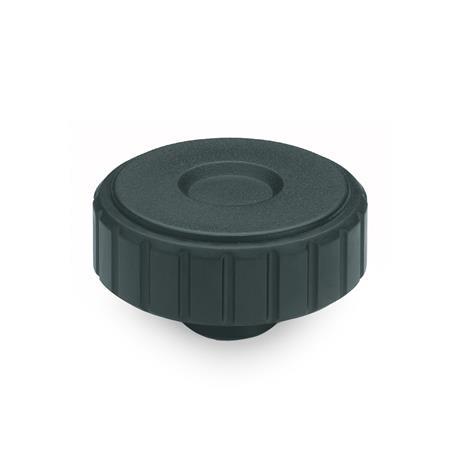

GN 4534 Softline Knurled Knobs, bushing in brass
ELESA original design MBT.SOFT
| d1 | d2 H9 | d3 | d4 | h1 | h2 | t min. |
|---|---|---|---|---|---|---|
| 44 | B 6 | M 6 | 17 | 24 | 10 | 13 |
| 44 | - | M 8 | 17 | 24 | 10 | 13 |
| 54 | B 8 | M 8 | 20 | 30 | 12,5 | 18 |
| 54 | - | M 10 | 20 | 30 | 12,5 | 18 |
Filter combination produces no result.
Specification
Base body
Plastic
Technopolymer (Polypropylen PP)
Softline coating
Bushing brass
RoHS
Plastic
Technopolymer (Polypropylen PP)
Softline coating
- Elastomer (TPE) 70 Shore A
- Chemically bonded with base body
- FDA compliant plastic granulate
- Temperature resistant up to 80 °C
- Black, matte
Bushing brass
RoHS
Information
The softline coating makes the knurled knobs GN 4534 particularly user-friendly and ergonomic.
The soft, slip-proof contact area improves the contact both in hot (hand perspiration) and in dry ambient conditions, in the event of oily surfaces and even high or low temperatures.
The use of softline knurled knobs is recommended particularly when frequent or heavy duty clamping is required.
see also...
| How to order |
| ||||
GN 4534-54-M10 |
