Spindle Steel, Zinc Plated

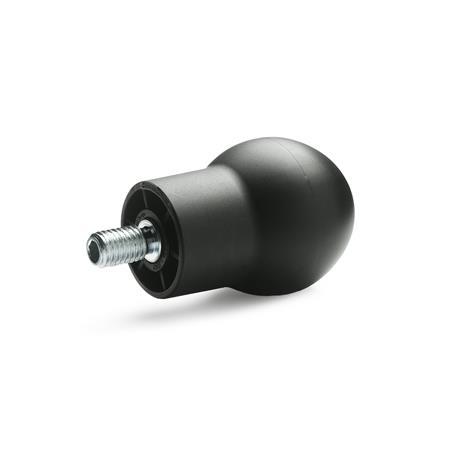

GN 596 Revolving Ball Knob, Plastic, shaft steel, zinc plated
ELESA original design EBS+x
| d1 | d2 | d3 | d4 +0,5 | l1 | l2 | l3 ≈ | l4 ≈ |
|---|---|---|---|---|---|---|---|
| 45 | M 10 | 12 | 32 | 64 | 17 | 1 | 22 |
Filter combination produces no result.
Specification
Plastic
Technopolymer (Polypropylene PP)
Spindle
Steel
Zinc plated, blue passivated
RoHS
Technopolymer (Polypropylene PP)
- Temperature resistant up to 80 °C
- Black, matte finish
Spindle
Steel
Zinc plated, blue passivated
RoHS
Information
The revolving ball knob GN 596 is in general used where a pulling action is involved such as on vertically positioned handwheels.
see also...
| How to order |
| ||||
GN 596-45-M10 |
