with Brass / Plastic Pivot

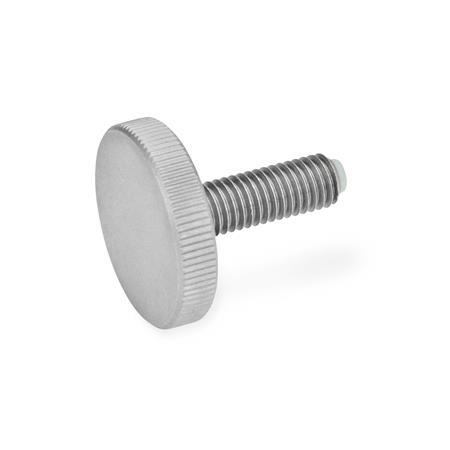

GN 653.10 Stainless Steel Flat Knurled Screws
| d1 | l1 -1 | l2 Brass pad | Plastic pad | d2 Brass pad | Plastic pad | d3 | k | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| M 5 | 12 | 16 | 20 | 25 | - | 0,5 | 1 | 3 | 3 | 20 | 4 |
| M 6 | 12 | 16 | 20 | 25 | 30 | 1 | 1,3 | 4 | 3,5 | 24 | 5 |
| M 8 | 16 | 20 | 25 | 30 | 40 | 1,5 | 1,6 | 6 | 5 | 30 | 6 |
Filter combination produces no result.
Specification
Stainless steelNI AISI 303
Pivot
RoHS
- Visible face fine turned
- Matte shot-blasted
Pivot
- BrassMS
- Plastic (Polyacetal POM)KU
RoHS
Information
Stainless steel flat knurled screws GN 653.10 with pivot in brass or plastic are used in applications, where marks and damages on the workpiece are unacceptable.
The head dimensions comply with flat knurled thumb screws DIN 653.
| How to order |
| ||||||||
GN 653.10-M6-25-NI-KU |
