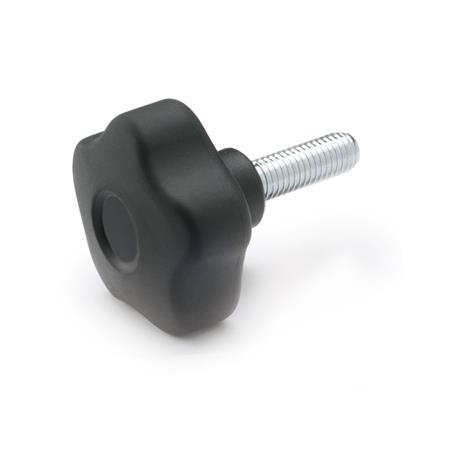

GN 5337.6 Softline Star Knobs with Threaded Stud, steel, zinc plated
ELESA original design VCT-p.SOFT
| d1 | d2 | Length l | d3 | h1 | h2 | FDA | |||
|---|---|---|---|---|---|---|---|---|---|
| 43 | M 6 | 16 | 20 | 25 | 30 | 17 | 29 | 11 | Ja |
| 43 | M 8 | 16 | 20 | 25 | 30 | 17 | 29 | 11 | |
| 53 | M 8 | 16 | 20 | 30 | 40 | 19 | 34 | 13 | |
| 53 | M 10 | 20 | 30 | 40 | 50 | 19 | 34 | 13 | |
| 66 | M 10 | 20 | 30 | 40 | 50 | 21,5 | 38,5 | 15,5 | |
| 66 | M 12 | 30 | 40 | 50 | - | 21,5 | 38,5 | 15,5 | |
| 77 | M 12 | 30 | 40 | 50 | - | 26 | 46 | 21 | |
Filter combination produces no result.
Specification
Base body
Plastic
Technopolymer (Polypropylen PP)
Softline coating
Color of the cover cap
black, RAL 9005, matte finish
Threaded stud
Steel
Zinc plated, blue passivated
RoHS
Plastic
Technopolymer (Polypropylen PP)
Softline coating
- Elastomer (TPE) 70 Shore A
- Chemically bonded with base body
- FDA compliant plastic granulate
- Temperature resistant up to 80 °C
- Black, matte finish
Color of the cover cap
black, RAL 9005, matte finish
Threaded stud
Steel
Zinc plated, blue passivated
RoHS
On request
Cover caps in other colors
Information
The softline coating makes the star knobs with threaded stud GN 5337.6 particularly user-friendly and ergonomic.
The soft, slip-proof contact area improves the contact both in hot (hand perspiration) and in dry ambient conditions, in the event of oily surfaces and even high or low temperatures.
The use of softline star knobs with threaded stud is recommended particularly when heavy duty clamping is required.
