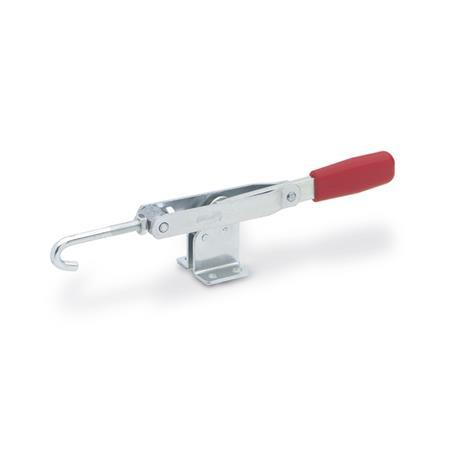

GN 850 Latch Type Toggle Clamps, Steel, zinc plated

T	With draw axle
TF	With draw hook

Show filter

Size	F_H in N Holding capacity	a₁	a₂	b₁	b₂	b₃	d₁	d₂	d₃	h₁ ≈	h₂

200	2000	37	29	35	45	18	10	8	6,5	49	16
300	3000	35	25	48	60	21	10	10	8,5	49	18
400	4000	43	30	54	84	26	14	12	10,5	60,5	25

Filter combination produces no result.

Size	l₁ ≈	l₂ ≈	l₃ ≈	m₁	m₂	m₃	r₁ ≈	r₂	s	w₁ Stroke	w₂ ≈ Adjustable range

200	202	51	93	32	8	19	102	5	3	100	20
300	225	51	98	45	8	32	105	6	3	104	20
400	278	58	117,5	60	12,5	28,5	138	7	5	160	20

Filter combination produces no result.

Specification

Sheet metal parts
Case-hardened steel C10
Zinc plated, blue passivated

Draw hook
Steel St 37
Zinc plated, blue passivated

All moving parts
Lubricated with special grease

Hand grip
High quality, oil resistant, red plastic

RoHS

The draw hook of the latch type toggle clamps GN 850 can be adjusted within the stroke.

RoHS compliant: Info

Weight:
