Aluminum, for Round Tubes and Square Tubes

GN 992 Insert Bushings

Show filter

d₁ Outside-Ø for tube, round	s Outside-Ø for tube, square	d₂	d₂	l₁	l₂	l₃ +0,5	w	for tube GN 990

D 20	V 20	M 8	-	29,5	2,5	16	2	D20 / V20
D 25	V 25	M 8	M 10	33,5	2,5	16	2	D25 / V25
D 30	V 30	M 8	M 10	33,5	2,5	18	2	D30 / V30
D 32	-	M 8	M 10	33,5	2,5	18	2	D32
D 35	V 35	M 10	M 12	37,5	2,5	24	2	D35 / V35
D 40	V 40	M 10	M 12	41,5	2,5	24	3	D40 / V40
D 42	-	M 10	M 12	41,5	2,5	24	3	D42
D 45	V 45	M 12	M 16	45,5	2,5	30	3	D45 / V45
D 48	-	M 12	M 16	45,5	2,5	30	3	D48
D 50	V 50	M 12	M 16	45,5	2,5	30	3	D50 / V50

Filter combination produces no result.

Specification

Aluminum
Plain

RoHS

Information

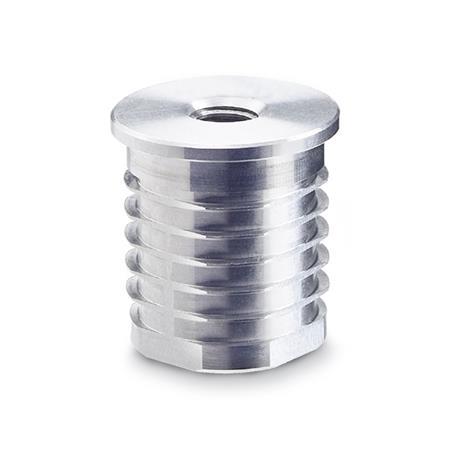

Drive the insert bushings GN 992 in by using a soft-head mallet. Their lamellas bridge a production tolerance of the internal diameter or of the internal square of ±0.5 mm, allowing screws to be mounted in tubes.

The dimensions match those of the construction tubes GN 990, but checking the tolerance position of the tube is recommended.
