GN 164 Scale Rings, with or without scale

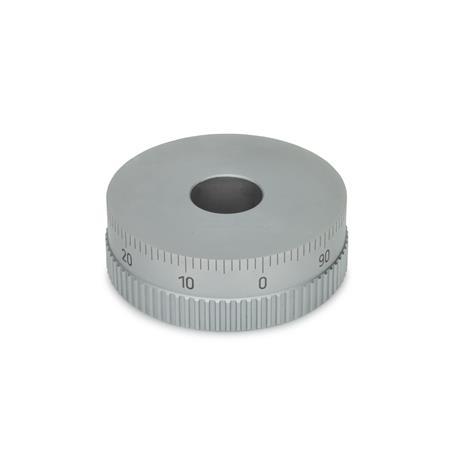

Scale Rings with or without scale GN 164 thumbnail

Scale Rings with or without scale GN 164 sketch

Bore code:

B	Without friction ring
R	With friction ring

Coding

MCR	Matte chrome plated
MCRS	Matte chrome plated, scale 0...90, 100 graduations, scale scheme d°°1°°/100 A RA 0-10 20...90/10

Show filter

d₁ ±0,02	d₂ H7 Bore		d₃	d₄ -0,02/-0,05		d₅

30	12	14	31,7	12	14	10,5
40	14	16	41,3	14	16	12,5
50	16	18	51,8	16	18	14,5
60	18	20	61,4	18	20	16,5

Filter combination produces no result.

Specification

Steel

Profile-milled knurl
Scale lug d₁ fine turned
Matte chrome plated without scale MCR
Matte chrome plated with standard scale MCRS

Scale
Engraved with laser precision,
black

Clamp ring
Rubber

Friction ring
Polyamide

ISO Fundamental Tolerances

RoHS

On request

Special graduations see "How to Order Graduations"

Information

The non-wearing friction ring ensures perfect engagement of the scale ring when re-aligning the spindle. In addition it allows the setting of the scale ring on a static shaft.

Besides the standard scale (Type MCRS) the scale rings can be supplied with any type of graduation. It is suggested to use the matte chrome plated version (MCR) so that a nice discrepancy in color is given.

Regarding design, numbering run, numbering position and numbering sequence of the scale please see the layout for scale rings on the order sheet (How to order Graduations).

Prices for other scales on request!
