Cast Iron

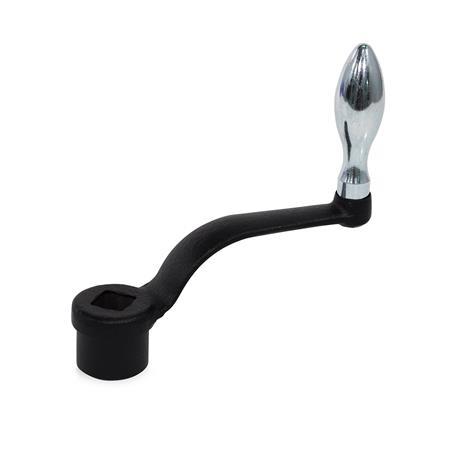

DIN 468 Cranked Handles, plastic coated
Type
| F | With fixed handle |
| D | With revolving handle |
| Length l | s H11 Square | e min. (Column 1) | (Column 2) | d1 H7 Bore | d2 | h1 | h2 | h3 ≈ | h4 ≈ Type D | Type F | Ø Handle | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 63 | V 10 | - | 13,1 | - | - | 20 | 20 | 11 | 32 | 54,5 | 50 | 16 |
| 80 | V 10 | V 12 | 13,1 | 16,1 | B 8 | 24 | 24 | 13 | 38 | 61 | 56 | 18 |
| 100 | V 12 | V 14 | 16,1 | 18,1 | B 10 | 28 | 28 | 13 | 48 | 67 | 64 | 20 |
| 125 | V 14 | V 17 | 18,1 | 22,2 | B 10 | 34 | 34 | 14 | 55 | 76 | 72 | 22 |
| 160 | V 17 | V 19 | 22,2 | 25,2 | B 14 | 38 | 38 | 14 | 65 | 83 | 80 | 25 |
| 200 | V 19 | V 22 | 25,2 | 28,2 | B 17 | 44 | 44 | 21 | 78 | 96,5 | 90 | 28 |
| 250 | V 22 | V 24 | 28,2 | 32,2 | B 17 | 48 | 48 | 21 | 90 | 105,5 | 100 | 32 |
| 315 | V 24 | V 27 | 32,2 | 36,2 | B 20 | 54 | 54 | 26 | 105 | 117 | 112 | 36 |
Filter combination produces no result.
Specification
Body
Cast iron (GGG)
RoHS
Cast iron (GGG)
- Powder coated
Black, textured finish - Face of the hub machined
RoHS
Information
The hub bores d1 H7 are not provided for in the official standard sheet.
| How to order |
| ||||||
DIN 468-100-V14-F |
