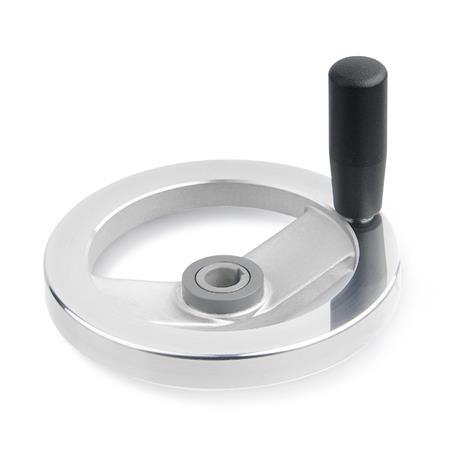

GN 322.5 Safety Handwheels, aluminium, rim polished
Type
| A | without handle |
| D | with revolving steel handle |
Coding
| ZI | Engage by pulling |
| DR | Engage by pushing |

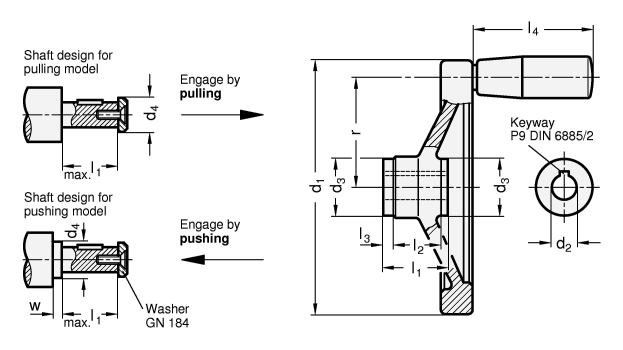

| d1 | d2 H7 Bore with keyway K | d3 | d4 max. | l1 | l2 | l3 | l4 ≈ | r | w min. | Ø Handle GN 598 | Coupling GN 000.5 Size |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 125 | K 12 | 29 | 17 | 42 | 18 | 12 | 67,5 | 54 | 4 | 23 | 1 |
| 140 | K 12 | 29 | 17 | 42 | 19 | 12 | 67,5 | 61 | 4 | 23 | 1 |
| 140 | K 14 | 33 | 21 | 48 | 19 | 14 | 67,5 | 61 | 4 | 23 | 2 |
| 160 | K 14 | 33 | 21 | 48 | 20 | 14 | 82,5 | 71 | 4 | 26 | 2 |
| 200 | K 18 | 39 | 26 | 50 | 24 | 13 | 82,5 | 89 | 4 | 26 | 3 |
| 250 | K 22 | 46 | 30 | 54 | 28 | 13 | 92,5 | 113 | 4 | 28 | 4 |
Filter combination produces no result.
Specification
Aluminum
Radial and axial runout of the rim < 0.4
Wheel body
Revolving handles GN 598
Steel, powder coated
Black, textured finish
RoHS
- Hub machined
- Rim turned
Radial and axial runout of the rim < 0.4
Wheel body
- Rim high-polished
- Unmachined body matte shot-blasted
Revolving handles GN 598
Steel, powder coated
Black, textured finish
RoHS
Information
The use of coupling attachments in handwheels other than specified is also possible.
| How to order |
| ||||||||
322.5-160-K14-D-ZI |
