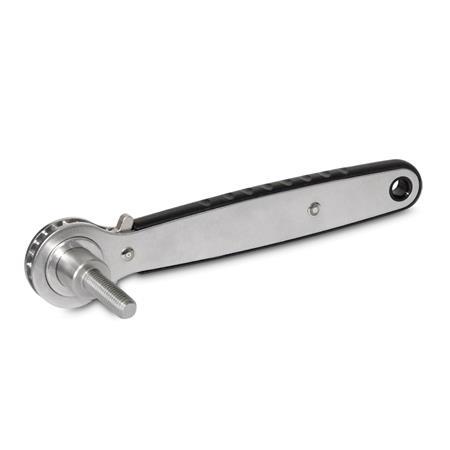

GN 318 Stainless Steel Ratchet Spanners, with threaded stud

Stainless Steel Ratchet Spanners with threaded stud GN 318 thumbnail Zoom

GN 318 Stainless Steel Ratchet Spanners, with threaded stud

Stainless Steel Ratchet Spanners with threaded stud GN 318
© Copyright
Otto Ganter GmbH & Co. KG
Photo can differ
Zoom Stainless Steel Ratchet Spanners with threaded stud GN 318 sketch


Type

CRatchet insert with threaded stud
l1d5
Threaded
stud M
l2b1b2d6d7h1h2h3
178M 816324029,61981410,917,5
178M 1020404029,61981410,917,5
178M 1225504029,61981410,917,5
Filter combination produces no result.

Specification

Housing
Stainless steel sheet AISI 304

Ratchet inserts
Stainless steel AISI 303
Turned

Locking pawl
Stainless steel AISI 316LHC
Sintered

Grip element
Plastic, Technopolymer (Polyamide)

Other components
Stainless steel
RoHS

On request

Other inserts analog GN 300.1-92

Information

Stainless steel ratchet spanners GN 318 are robust, easy to handle and ergonomically shaped to sit easily in the hand.

Stainless steel ratchet spanners are normally used wherever the same ratchet insert is always required or where it makes sense to leave the ratchet spanner at the place of use or attach it to equipment or machinery as a „stationary“ tool. The ratchet inserts are available in different versions depending on their type and are permanently fixed in the housing. Due to the high-quality materials, the ratchet spanner is suitable for use in aggressive environments.

How to order
1l1
2d5
3l2
4Form
GN 318-178-M12-50-C

RoHS compliant: Info -
Weight: Info -
