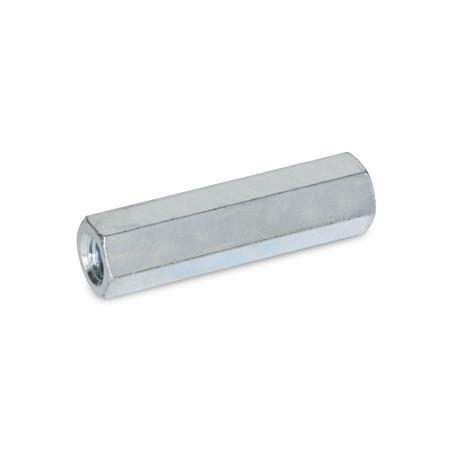

GN 6220 Spacers

Type

A	Internal thread
B	Internal thread and threaded stud

Show filter

d	l₁ ±0,1 Type A Through-hole thread				Threaded blind hole										e ≈	s	t min.

M 2,5	5	8	10	12	15	20	25	30	-	-	-	-	-	-	5,8	5	7
M 3	8	10	12	-	15	20	25	30	35	40	45	50	-	-	6,4	5,5	7
M 4	10	12	15	-	20	25	30	35	40	45	50	60	70	80	8	7	9
M 5	12	15	-	-	20	25	30	35	40	45	50	60	70	80	9,2	8	10
M 6	12	15	-	-	20***	25***	30	35	40	45	50	60	70	80	11,5	10	12
M 8	15	20	-	-	25****	30	35	40	45	50	60	70	80	-	15	13	14
M 10	25	30	-	-	35	40	45	50	60	70	80	100	-	-	19,5	17	16

Filter combination produces no result.

d	l₁ ±0,1 Type B													e ≈	l₂	s	t min.

M 2,5	8*	10*	12	15	20	25	30	-	-	-	-	-	-	5,8	6	5	7
M 3	8*	10*	12	15	20	25	30	35	40	45	50	-	-	6,4	6	5,5	7
M 4	10*	12**	15	20	25	30	35	40	45	50	60	70	80	8	8	7	9
M 5	12**	15	20	25	30	35	40	45	50	60	70	80	-	9,2	8	8	10
M 6	15***	20	25	30	35	40	45	50	60	70	80	-	-	11,5	10	10	12
M 8	20	25	30	35	40	45	50	60	70	80	-	-	-	15	14	13	14
M 10	25	30	35	40	45	50	60	70	80	100	-	-	-	19,5	16	17	16

Filter combination produces no result.

* t min. = 5 mm, ** t min. = 7 mm, *** t min. = 10 mm, **** t min. = 12 mm

Specification

SteelST
Zinc plated, blue passivated

RoHS

Information

Spacers GN 6220 are commonly used as spacing rods. They allow parts to be fastened with an offset parallel to their mounting plane. Type A is also used as a connecting nut.

Any total length can be realized through the combination of multiple spacers.
