for 19“ Rack and Enclosure Layout

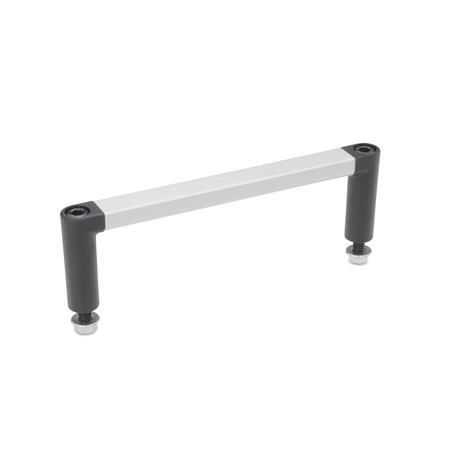

GN 423 U-Handles, Alumnium, plastic
Type
| A | Mounting from the back (Self-tapping screws) |
| B | Mounting from the operator's side |
| b1 | l1 ±0,25 | b2 | d1 | d2 | d3 | h1 | h2 | l2 | l3 max. | l4 min. | l5 max. | l6 | s | HE |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12 | 55 | 12,5 | M 5 | 4,3 | 12,5 | 40 | 34,5 | 67,5 | 5 | 14 | 5 | 10,5 | 9 | 2 |
| 12 | 88 | 12,5 | M 5 | 4,3 | 12,5 | 40 | 34,5 | 100,5 | 5 | 14 | 5 | 10,5 | 9 | 3 |
| 12 | 100 | 12,5 | M 5 | 4,3 | 12,5 | 40 | 34,5 | 112,5 | 5 | 14 | 5 | 10,5 | 9 | 3 |
| 12 | 120 | 12,5 | M 5 | 4,3 | 12,5 | 40 | 34,5 | 132,5 | 5 | 14 | 5 | 10,5 | 9 | 4 |
| 12 | 180 | 12,5 | M 5 | 4,3 | 12,5 | 40 | 34,5 | 192,5 | 5 | 14 | 5 | 10,5 | 9 | 5 |
| 12 | 235 | 12,5 | M 5 | 4,3 | 12,5 | 40 | 34,5 | 247,5 | 5 | 14 | 5 | 10,5 | 9 | 6 |
Filter combination produces no result.
Specification
Handle bar
Aluminum
Handle shanks
Plastic (Polyamide PA)
Handle bar
Anodized, natural colorELS
Handle shanks
Black, matte finish
Handle bar
Anodized, BlackESS
Handle shanks
Black, matte finish
Handle bar
Anodized, natural colorELG
Handle shanks
Light gray, matte finish
Socket cap screws DIN 912-M5-45
Steel zinc plated, black finish
Flange nuts DIN 1661-M5
Steel zinc plated, blue passivated
Self-tapping screws ISO 7049
Steel zinc plated ST4,8-19
RoHS
Aluminum
Handle shanks
Plastic (Polyamide PA)
- Glass fiber reinforced
- Temperature resistant up to 130 °C
Handle bar
Anodized, natural colorELS
Handle shanks
Black, matte finish
Handle bar
Anodized, BlackESS
Handle shanks
Black, matte finish
Handle bar
Anodized, natural colorELG
Handle shanks
Light gray, matte finish
Socket cap screws DIN 912-M5-45
Steel zinc plated, black finish
Flange nuts DIN 1661-M5
Steel zinc plated, blue passivated
Self-tapping screws ISO 7049
Steel zinc plated ST4,8-19
RoHS
Information
The dimensisons of the U-handles GN 423 have been designed to match a 19“ rack and enclosure layout.
The values of the height unit HE given in the table refer to the corresponding front panel heights of the housings.
Handle bar and handle shanks are interconnected via a plug-type connection, with the effect that special lengths are easily realised.
Thanks to the fixing screws included in the set, the U-Handles are easily and economically mounted.
