with Threaded Stud

GN 709.1 Clamping Pads, Steel

Type

B	Smooth contact face
R	Serrated contact face
BR	Smooth contact face, with automatic return
RR	Serrated contact face, with automatic return
RH	Serrated contact face, with hard metal ball
RRH	Serrated contact face, with automatic return, with hard metal ball

Show filter

d₁	d₂		d₃ Type B, R Type BR, RR	Type RH Type RRH	d₄ Ball-Ø	l₁ ±0,02	l₂ ±0,1	l₃	A/F	Static load max. in kN

13	M 6	M 8	7,2	8,3	10	13	13	8	11	10
20	M 8	M 10	10,5	13,2	16	18	18	10	17	25
20	M 12	-	10,5	13,2	16	18	18	12	17	25
30	M 16	-	20	20	25	27	27	16	27	90
50	M 20	-	34,5	34,5	40	35	35	20	41	165
50	M 24	-	34,5	34,5	40	35	35	24	41	165

Filter combination produces no result.

Specification

Steel

Tempered
Phosphated

Ball
Steel
Hardened, plain
(Type B / R / BR / RR)

Ball
Hard metal steel
Nickel plated
(Type RH / RRH)

Spring element
Plastic (PUR)
(Type BR / RR / RRH)

Elastomer Characteristics

RoHS

Information

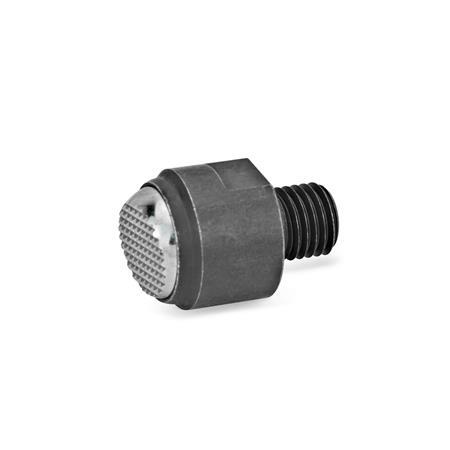

Clamping pads GN 709.1 are used as movable supports or plungers for clamping workpieces. They can also be used as stops. For cast components the use of clamping pads with a hard metal ball is recommended.

After the clamping process, the contact surfaces of clamping pads automatically reset themselves to their initial position. This prevents the bearing from jamming in an inclined position when the workpiece is inserted.

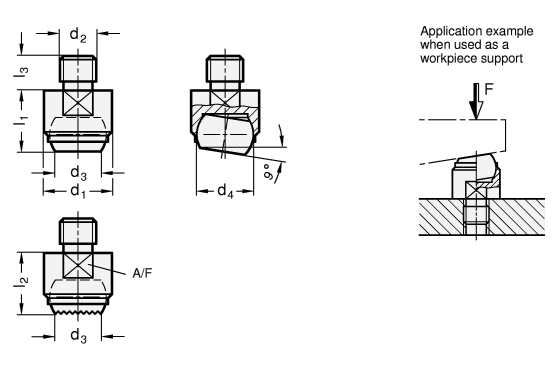

The bearing can be rotated by a maximum of 9° and is secured against further rotation.
