with Ball, with Slot

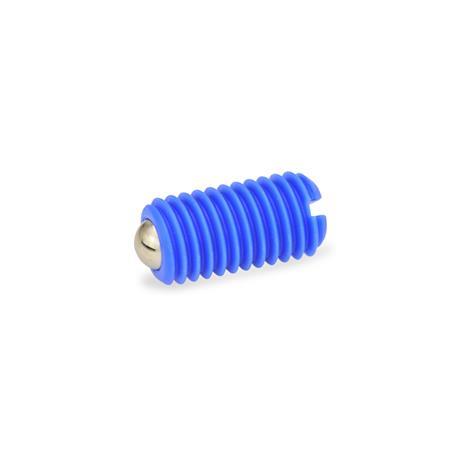

GN 615.2 Plastic Spring Plungers, Ball Stainless Steel or plastic
| d1 | d2 | Length l | w compression | Spring load in N ≈ initial | end |
|---|---|---|---|---|---|
| M 6 | 3,5 | 14 | 0,9 | 12 | 17 |
| M 8 | 5 | 16 | 1,5 | 20 | 35 |
| M 10 | 6 | 19 | 1,9 | 25 | 45 |
Filter combination produces no result.
Specification
Housing
Plastic (Polyacetal POM)
Temperature resistant 50 °C
Ball
Pressure spring
Stainless steel AISI 631
RoHS
Plastic (Polyacetal POM)
Temperature resistant 50 °C
Ball
- Stainless SteelNI
AISI 420C, hardened - PlasticP (Polyacetal POM)
Pressure spring
Stainless steel AISI 631
RoHS
Information
Plastic spring plungers GN 615.2 are used as detents as well as for push-on and push-off applications and ejectors.
These spring plungers are all stainless versions.
| How to order |
| ||||
GN 615.2-M6-NI |
RoHS compliant:
-
-
Weight:
-
-
