with Large Hub

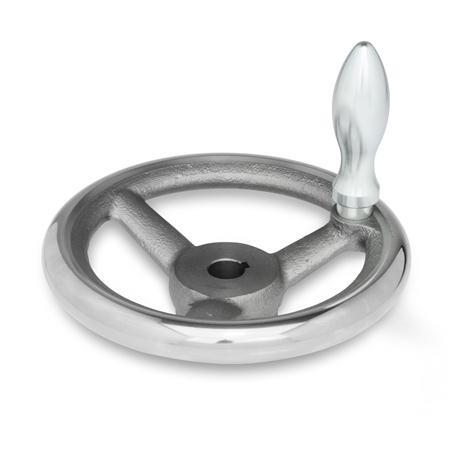

GN 950.1 Handwheels, cast iron, rim polished
Bore code
| B | Without keyway |
| K | With keyway |
Type
| A | Without handle |
| D | With revolving handle |

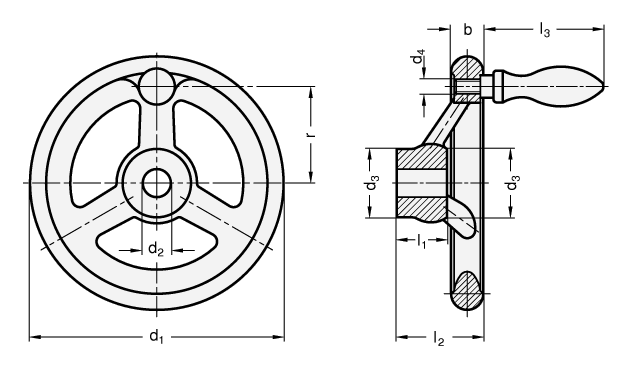

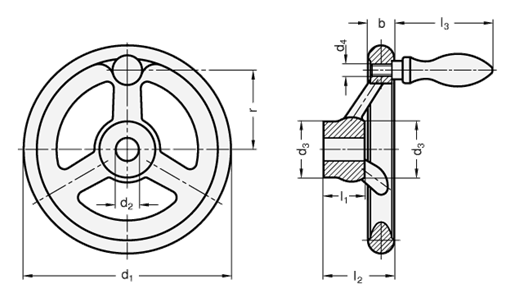

| d1 | d2 H7 Bore | d3 | b | l1 | l2 ≈ | l3 ≈ | r | Ø Handle | No. of spokes |
|---|---|---|---|---|---|---|---|---|---|
| 125 | 14 | 34 | 16 | 26 | 45 | 65 | 47 | 20 | 3 |
| 160 | 16 | 45 | 18 | 32 | 52 | 80 | 62 | 25 | 3 |
| 200 | 20 | 50 | 22 | 38 | 59 | 80 | 80 | 25 | 3 |
| 250 | 24 | 56 | 26 | 44 | 66 | 102 | 101 | 32 | 5 |
Filter combination produces no result.
Specification
Cast ironGG
Radial and axial runout of the rim < 0.4
RoHS
- Hub machined
- Rim turned and polished
Radial and axial runout of the rim < 0.4
RoHS
Information
Handwheels GN 950.1 differ from normal handwheels DIN 950 only by the larger hub which allows large bores.
| How to order |
| ||||||||||
GN 950.1-GG-125-K14-A |
