Made of Sheet Metal

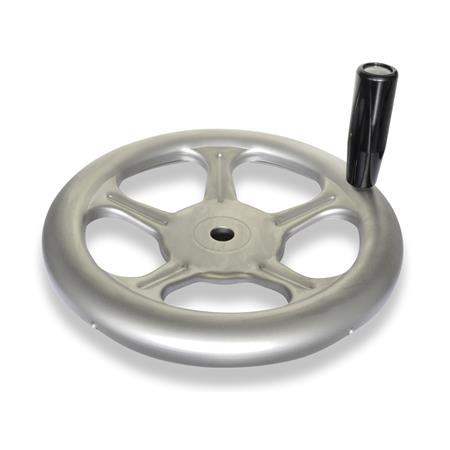

GN 228 Stainless Steel Handwheels
Bore code
| B | Without keyway |
| K | With keyway |
| V | With square |
Type
| A | Without handle |
| D | With revolving handle |
| d1 | d2 H9 Bore | s H11 Square | b | d3 | l1 | l2 ≈ | l3 | r | Ø Handle | No. of spokes | Thickness of sheet metal |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 125* | 11 | V 11 | 18 | 30 | 18 | 29 | - | - | - | 3 | 1,5 |
| 160 | 12 | V 12 | 22 | 30 | 20 | 37 | 80 | 68 | 26 | 4 | 1,5 |
| 200 | 14 | V 14 | 22 | 40 | 24 | 46 | 80 | 88 | 26 | 4 | 2 |
| 250 | 17 | V 17 | 30 | 45 | 28 | 52 | 90 | 108 | 28 | 5 | 2,5 |
| 315 | 19 | V 19 | 35 | 55 | 33 | 64 | 90 | 138 | 28 | 5 | 2,5 |
| 400 | 24 | V 24 | 40 | 65 | 38 | 82 | 90 | 179 | 28 | 5 | 3 |
Filter combination produces no result.
* only type A
Specification
Stainless steelA4 AISI 316L
Revolving handle similar to GN 598.2
Keyway P9 DIN 6885 Page 1
Plastic Characteristics
Squares DIN 79
Cross holes GN 110
ISO Fundamental Tolerances
Stainless Steel Characteristics
RoHS
- Matte shot-blastedGS
- Wheel body of stainless sheet steel
- Hub welded
Revolving handle similar to GN 598.2
- Plastic, Duroplast
Black, shiny finish - Spindle
Stainless steel AISI 316L - O-rings
Rubber NBR (Perbunan®)
Keyway P9 DIN 6885 Page 1
Plastic Characteristics
Squares DIN 79
Cross holes GN 110
ISO Fundamental Tolerances
Stainless Steel Characteristics
RoHS
Information
Handwheels GN 228 of stainless sheet steel are robust and unaffected by shocks and knocks. The hub lengths l1 and the diameter d3 correspond to DIN 950.
The stainless steel design is suitable for applications in highly corrosive environments thanks to the A4 materials used.
On the revolving handles of type D, the O-rings minimize the radial play, protect the handle bearing from penetrating dirt and prevent noises resulting from vibration.
| How to order |
| ||||||||||||
GN 228-A4-200-V14-D-GS |
