Kunststoff, Abdeckkappe farbig

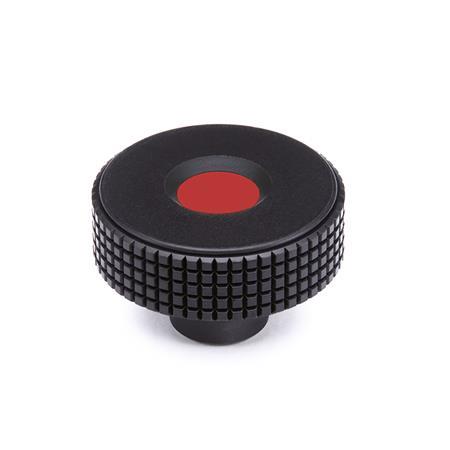

GN 534 Kordelgriffe, Buchse Messing
![Kordelgriffe Buchse Messing GN 534 Skizze](GanCipImages/04cad04d-6099-438b-bcf7-dd15f0624426/Kordelgriffe-Buchse-Messing-GN-534-Skizze.png?scalingName=skizzeGross)
d1 Nennmaß | Istmaß | d2 Gewinde | d3 H9 Bohrung | d4 | h1 | h2 | t1 min. | t2 min. |
---|---|---|---|---|---|---|---|---|
32 | 31 | M 5 | - | 15 | 24 | 11,5 | 10 | - |
32 | 31 | M 6 | - | 15 | 24 | 11,5 | 12 | - |
40 | 39,5 | M 6 | B 6 | 17 | 26,5 | 12,5 | 12 | 14 |
40 | 39,5 | M 8 | - | 17 | 26,5 | 12,5 | 13 | - |
50 | 50 | M 8 | B 8 | 20 | 33 | 16 | 20 | 20 |
50 | 50 | M 10 | - | 20 | 33 | 16 | 18 | - |
60 | 61 | M 10 | B 10 | 23 | 39 | 18,5 | 20 | 25 |
60 | 61 | M 12 | - | 23 | 39 | 18,5 | 20 | - |
70 | 70 | M 12 | - | 24 | 42 | 20,5 | 20 | - |
70 | 70 | M 14 | - | 24 | 42 | 20,5 | 20 | - |
Filterkombination ergibt keine Treffer.
Ausführung
Kunststoff
Thermoplast (Polypropylen PP)
Buchse
Messing
Farbe der Abdeckkappe
orange, RAL 2004, mattDOR![DOR](/images/smfarbenergostyle1/dor.gif)
grau, RAL 7035, mattDGR![DGR](/images/smfarbenergostyle1/dgr.gif)
gelb, RAL 1021, mattDGB![DGB](/images/smfarbenergostyle1/dgb.gif)
blau, RAL 5024, mattDBL![DBL](/images/smfarbenergostyle1/dbl.gif)
rot, RAL 3000, mattDRT![DRT](/images/smfarbenergostyle1/drt.gif)
grün, RAL 6017, mattDGN
RoHS
Thermoplast (Polypropylen PP)
- verstärkt, schlagfest
- temperaturbeständig bis 90° C
- schwarz, RAL 9005, mattSW
Buchse
Messing
Farbe der Abdeckkappe
orange, RAL 2004, mattDOR
![DOR](/images/smfarbenergostyle1/dor.gif)
grau, RAL 7035, mattDGR
![DGR](/images/smfarbenergostyle1/dgr.gif)
gelb, RAL 1021, mattDGB
![DGB](/images/smfarbenergostyle1/dgb.gif)
blau, RAL 5024, mattDBL
![DBL](/images/smfarbenergostyle1/dbl.gif)
rot, RAL 3000, mattDRT
![DRT](/images/smfarbenergostyle1/drt.gif)
grün, RAL 6017, mattDGN
![DGN](/images/smfarbenergostyle1/dgn.gif)
RoHS
Hinweis
Das besondere Profil des Rändels (kleine Quadrate) ist charakteristisch für Form und Funktion der Kordelgriffe GN 534.
Bestellbeispiel |
| ||||||||
GN 534-50-M10-SW-DRT |
