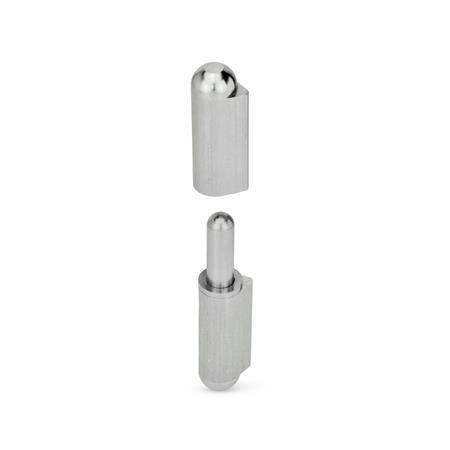

Detachable, for Welding
GN 128.2 Stainless Steel Hinges
| Length l Material NI | Material A4 | d1 | d2 Pin | s1 | s2 |
|---|---|---|---|---|---|
| 60 | - | 10 | 6 | 12 | 2 |
| 80 | 80 | 13 | 8 | 15,5 | 2 |
| 100 | 100 | 16 | 10 | 20 | 3 |
| 120 | 120 | 16 | 11 | 20 | 3 |
| 150 | - | 20 | 13 | 25,5 | 3 |
| 180 | - | 20 | 14 | 25,5 | 3 |
Filter combination produces no result.
Specification
Stainless steelNI
Stainless steelA4
RoHS
- AISI 304
- Pin / Washer
Stainless steel AISI 303
Stainless steelA4
- AISI 316
- Pin / Washer
Stainless steel AISI 316
RoHS
Information
Hinges GN 128.2 are produced from drawn weldable profiled stainless steel extrusions.
The pin is fixed in the lower half.
see also...
| How to order |
| ||||
GN 128.2-80-A4 |
