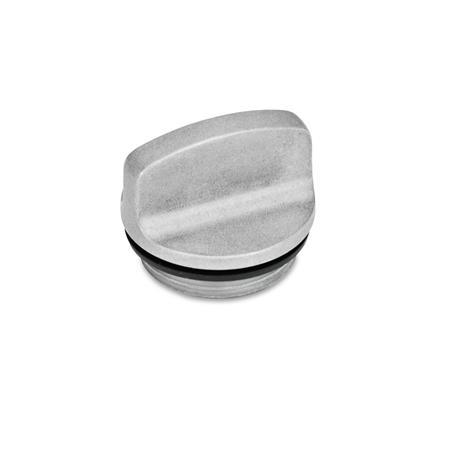

Aluminum, with Wing Knob, up to 100 °C

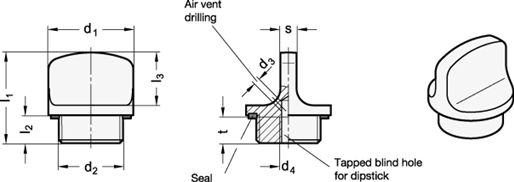

GN 441 Threaded Plugs
Identification no.

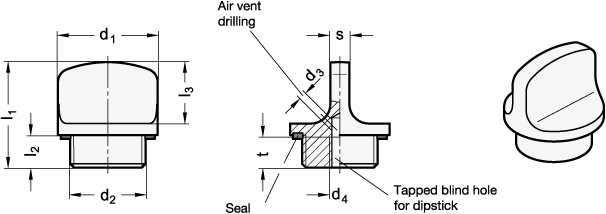

| 1 | Without vent drilling |
| 2 | With vent drilling |
| d1 | d2 | d3 Vent drilling | d4 | l1 ±0,5 | l2 | l3 | s | t min. | |
|---|---|---|---|---|---|---|---|---|---|
| 22 | G 3/8 | M 16 x 1,5 | 2 | M 5 | 26 | 8 | 15 | 5 | 8 |
| 26 | G 1/2 | M 20 x 1,5 | 2 | M 5 | 27,5 | 8,5 | 16 | 5 | 8 |
| 32 | G 3/4 | M 26 x 1,5 | 2 | M 5 | 29 | 9 | 17 | 6 | 8 |
| 40 | G 1 | - | 2 | M 5 | 32,5 | 11 | 18 | 7 | 8 |
Filter combination produces no result.
Specification
Aluminum
Seal
Rubber NBR (Perbunan®)
RoHS
- Powder coated
Black, RAL 9005, textured finishSW
- Plain, tumbledBL
- Temperature resistant up to 100° C
Seal
Rubber NBR (Perbunan®)
RoHS
On request
Threaded plugs with dipstick
Information
Threaded plugs GN 441 with the external diameter d1 match the screw-in holes for DIN 3852 pipe bolt connections.
The sealing ring is embedded in a radial recess on the plane side, which makes the seal captive and cannot be squeezed out during tightening.
| How to order |
| ||||||||
GN 441-22-M16x1,5-1-BL |
