AISI 316, with Mounting Taps

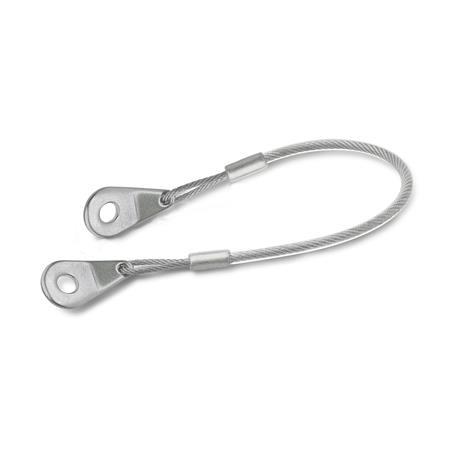

GN 111.8 Stainless Steel Retaining Cables

Type
C | With 2 mounting tabs |
Length l | Static load in N ≈ |
---|---|
150 | 1500 |
200 | 1500 |
320 | 1500 |
Filter combination produces no result.
Specification
Retaining cable
Stainless steel AISI 316
Plastic coated (PVC)
TransparentTR
Mounting tab
Stainless steel AISI 316
Plain
Press sleeves
Stainless steel AISI 316
RoHS
Stainless steel AISI 316
Plastic coated (PVC)
TransparentTR
Mounting tab
Stainless steel AISI 316
Plain
Press sleeves
Stainless steel AISI 316
RoHS
Information
Stainless steel retaining cables GN 111.8 are available in 3 different types and can therefore be used in a wide range of applications, e.g. for loss protection or as connecting and mounting cables.
Due to the selection of materials, the stainless steel retaining cables are suitable for use in highly corrosive environments.
For all types the loops are reversed laterally and attached parallel to each other, which is not entirely considered in the simplified drawing. The load values given in the table are non-binding guide values and rule out any liability.
How to order |
| ||||||
GN 111.8-200-C-TR |
