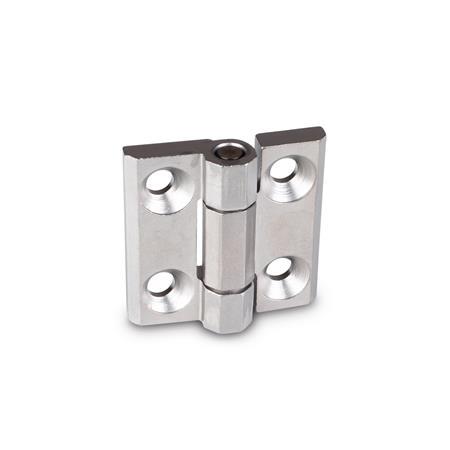

GN 237.3 Stainless Steel Heavy Duty Hinges
Type
| A | With bores for countersunk screws |
| B | With bores for countersunk screws and centering attachments |
| l1 | l2 | d1 | d2 | d3 | d4 +0,5 recommended locating bore | h1 | h2 | h3 | h4 | h5 | l3 | m1 | m2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 50 | 6,3 | 6 | 9,5 | 10 | 12,5 | 6 | 6,5 | 2 | 13 | 21 | 30 | 30 |
| 60 | 60 | 8,3 | 8 | 12,5 | 13 | 16 | 8 | 8,5 | 3 | 17 | 25,5 | 36 | 36 |
| 80 | 80 | 10,3 | 10 | 14,5 | 15 | 20 | 10 | 10,5 | 4 | 21 | 36 | 50 | 50 |
Filter combination produces no result.
Specification
Stainless steelNI
German Material No. 1.4405
Hinge pin
Stainless steel
Shim washers
Stainless steel AISI 301
RoHS
German Material No. 1.4405
- Matte shot-blastedGS
- Powder coated
Black, RAL 9005, textured finishSW
Hinge pin
Stainless steel
- German Material No 1.4542
- Tempered
- With special grease lubricated
Shim washers
Stainless steel AISI 301
- Tempered
- With special grease lubricated
RoHS
Information
Stainless steel heavy duty hinges GN 237.3 are designed for use under tough conditions and are distinguished by a compact design. The hinge pins are integral and allow the hinges to be used in environments with strong vibrations and shocks.
The material of the hinge wings is very robust and is suitable for use in aggressive environments, subject to some restrictions. Wear is minimized by the effective friction pairing of the hinge components and lubrication.
The type B hinge has centering attachments that prevent lateral slippage under high loads and protect the mounting screws from impermissible transverse force.
see also...
| How to order |
| ||||||||||
GN 237.3-NI-80-80-B-GS |
