Plastic
GN 449 Spring-Bolt Door Latches
ELESA original design BMS
Type
| A | Snap lock, without interlock, without finger handle |
| B | Snap lock, with interlock, with finger handle |
| b | Holding force FH in N (for type A with bore distance 34 mm) |
|---|---|
| 38 | 100 |
Filter combination produces no result.
Specification
Plastic
Polyamide PA
Pressure spring
Stainless steel
RoHS
Polyamide PA
- Glass fiber reinforced
- Temperature resistant up to 80 °C
- Black, matte finishSW
Gray, matte finishLG
Pressure spring
Stainless steel
RoHS
Information

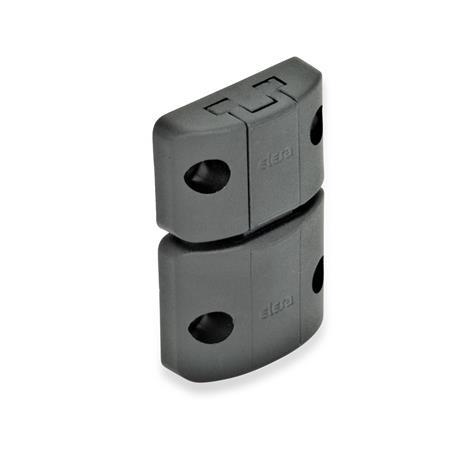

Spring-bolt door latches GN 449 are an easy way of holding swing doors shut.
They are resistant to wear and have a high retaining force.
In the design with finger handle (Type B), the door is held shut with form-locking effect. The door is opened by unlocking the finger handle. This handle often saves using the extra operating handle at the door.
| How to order |
| ||||||
GN 449-38-A-SW |
RoHS compliant:
-
-
Weight:
-
-
