with Internal Hexagon

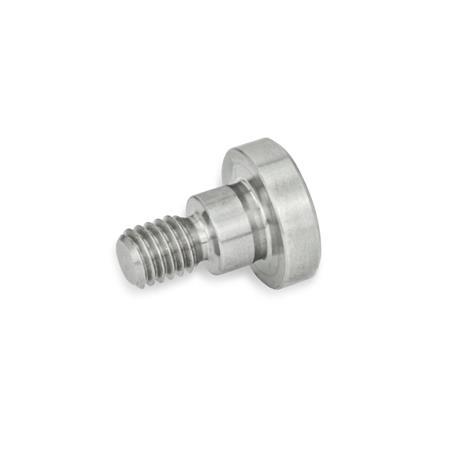

GN 732.1 Stainless Steel Cylinder Head Shoulder Bolts, Steel, blackened
| d1 | d2 | l1 +0,20/+0,13 | d3 | l2 | l3 | s | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M 5 | 6 -0,03/-0,05 | 5 | 6 | 7 | 8 | - | - | - | 12 | 7 | 3 | 3 |
| M 6 | 8 -0,05/-0,08 | 5 | 6 | 8 | 9 | 10 | 12 | 13 | 14 | 8 | 4 | 4 |
| M 8 | 10 -0,05/-0,08 | 8 | 10 | 12 | 14 | 15 | - | - | 16 | 11 | 5 | 5 |
| M 10 | 12 -0,05/-0,08 | 12 | 14 | 16 | 17 | - | - | - | 19 | 13 | 6 | 6 |
| M 12 | 14 -0,05/-0,08 | 14 | 16 | 18 | - | - | - | - | 22 | 16 | 8 | 8 |
| M 14 | 16 -0,05/-0,08 | 17 | 18 | - | - | - | - | - | 25 | 19 | 8 | 8 |
Filter combination produces no result.
Specification
Information
The dimensions d2/ l1 of the stainless steel cylinder head shoulder bolts GN 732.1 permit a use as bearing pin for swing bolts DIN 444, swing bolts GN 1524, swing nuts GN 444.2 and hubs with eccentrical cam GN 919.
| How to order |
| ||||||||
GN 732.1-M8-10-12-NI |
RoHS compliant:
-
-
Weight:
-
-
