Removable, with or without Rest Position

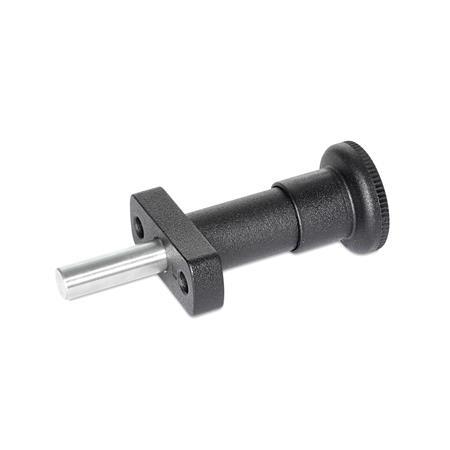

GN 817.9 Indexing Plungers

Type

B	Without rest position
C	With rest position

Show filter

d₁ Plunger -0,02/-0,05 Bore +0,10/+0,03	l₁	l₂ max. Stroke	b	d₂	d₃	d₄ -0,02/-0,1	d₅	d₆	k	l₃	l₄	l₅	l₆	l₇	l₈ ±0,1	t	Spring load in N≈ initial	end

7	6	8	13	4,3	23	5	M 3	34	22	20	48	22	6	31	17,6	7	6,5	19
7	9	11	13	4,3	23	5	M 3	34	22	20	48	22	6	27,5	21,1	7	6	25
8	8	10	16	5,3	28	6	M 4	38	26	25	58	26	8	39	20,6	8	8,5	26
8	12	14	16	5,3	28	6	M 4	38	26	25	58	26	8	34	25,6	8	8,5	28
10	12	14	16	5,3	28	7,5	M 4	38	26	30	58	26	8	39,2	25,4	8	9,5	38

Filter combination produces no result.

Specification

Guide
Zinc die casting
Powder coated
Black, textured finish

Plunger pin
Stainless steel AISI 303

Countersunk screw DIN 7991
Stainless steel AISI 304

Knob
Plastic (Polyamide PA)
Black, matte

Load Rating Information

Stainless Steel Characteristics

Plastic Characteristics

RoHS

Information

Indexing plungers GN 817.9 have been designed such that special versions of the indexing pins can also be made economically in smaller unit quantities.

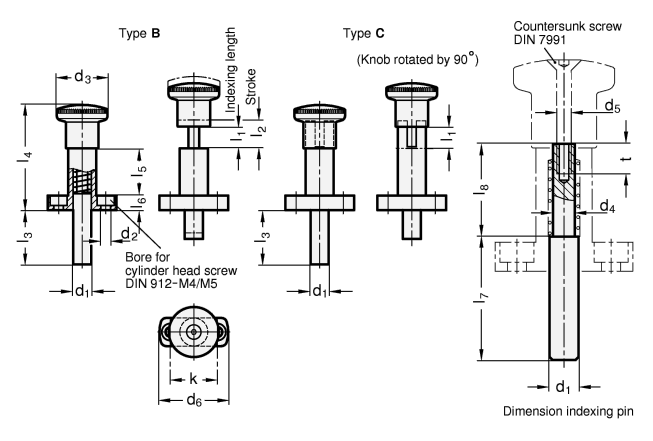

If required, the indexing pins can be machined or made by the user as shown in the drawing above. They are assembled with a countersunk screw and can therefore be assembled several times. All parts are supplied in a non-assembled set.

The indexing plungers type C are used for such applications where the plunger has to stay in its retracted position. To achieve this, the knob is rotated by 90° degrees after being retracted. A notch keeps the plunger in this position.
